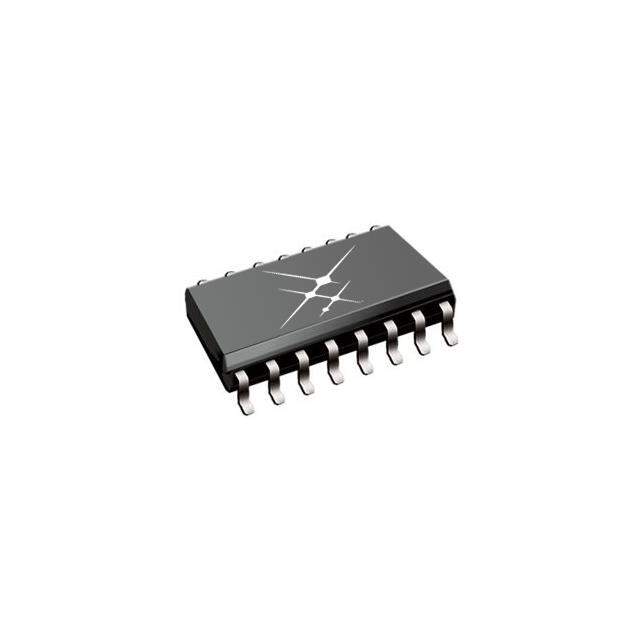

SI82396CB-IS1 Real Image
Same model may have multiple batches, images only for reference.

SI82396CB-IS1

Part No SI82396CB-IS1
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DVR 16SOIC / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 16-SOIC
Datasheet
SI82396CB-IS1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Propagation Delay tpLH / tpHL (Max) 40ns, 40ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns (Max)
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 12.8V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI82396
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 336-3868
Standard Package 48
Win Source Part Number 995432-SI82396CB-IS1
Ultra Librarian 3D Model Ultra Librarian SI82396CB-IS1 CAD Model

Description

The SI82396CB-IS1 is an isolator - gate driver electronic component manufactured by Skyworks Solutions Inc.

  • Win Source Part Number: 995432-SI82396CB-IS1
  • Series: Automotive, AEC-Q100
  • Package: Tube
  • Standard Package: 48
  • Mounting: SMD (SMT)
  • Technology: Capacitive Coupling
  • Current - Output High, Low: 2A, 4A
  • Rise / Fall Time (Typ): 12ns, 12ns (Max)
  • Number of Channels: 2
  • Voltage - Isolation: 2500Vrms
  • Common Mode Transient Immunity (Min): 35kV/µs
  • Propagation Delay tpLH / tpHL (Max): 40ns, 40ns
  • Current - Peak Output: 4A
  • Pulse Width Distortion (Max): 5.6ns
  • Package / Case: 16-SOIC (0.154 inches, 3.90mm Width)
  • Supplier Device Package: 16-SOIC
  • Temperature Range - Operating: -40°C ~ 125°C
  • MSL Level: 2A (4 Weeks)
  • Voltage - Output Supply: 12.8V ~ 24V
  • HTSUS: 8542.39.0001
