Same model may have multiple batches, images only for reference.

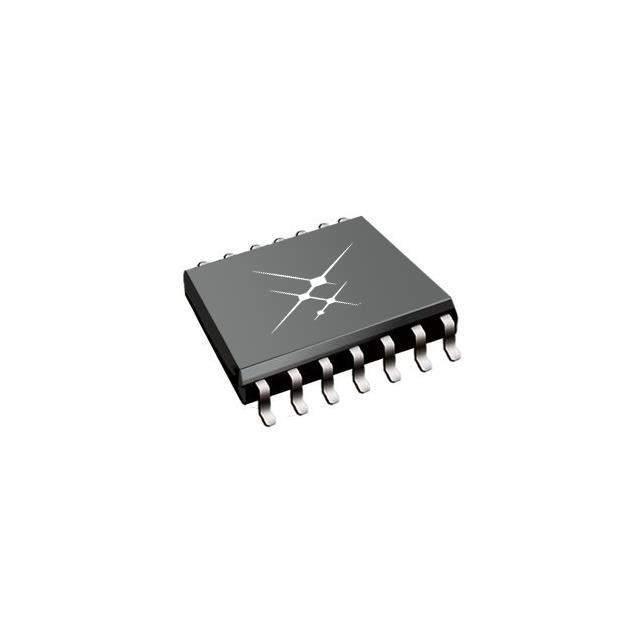

SI82390CD-IS3 Real Image
Same model may have multiple batches, images only for reference.

SI82390CD-IS3

Part No SI82390CD-IS3
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description 5 KV 12 V UVLO DUAL ISOLATED GAT / 4A Gate Driver Capacitive Coupling 3250Vrms 2 Channel 14-SOIC
Datasheet
SI82390CD-IS3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tube
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 3250Vrms
Common Mode Transient Immunity (Min) 35kV/µs
Propagation Delay tpLH / tpHL (Max) 40ns, 40ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 12ns, 12ns (Max)
Current - Output High, Low 2A, 4A
Current - Peak Output 4A
Voltage - Output Supply 12.8V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-SOIC (0.295", 7.50mm Width)
Supplier Device Package 14-SOIC
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI82390
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 336-SI82390CD-IS3
Standard Package 46
Win Source Part Number 1089665-SI82390CD-IS3
Ultra Librarian 3D Model Ultra Librarian SI82390CD-IS3 CAD Model

Description

The SI82390CD-IS3 is an isolator that belongs to the Isolators - Gate Drivers category of electronic components.

  • Category: Isolators - Gate Drivers
  • Technology: Capacitive Coupling
  • Current Output High, Low: 2A, 4A
  • Win Source Part Number: 1089665-SI82390CD-IS3
  • Package: Tube
  • Common Mode Transient Immunity: 35kV/µs
  • Propagation Delay tpLH / tpHL (Max): 40ns, 40ns
