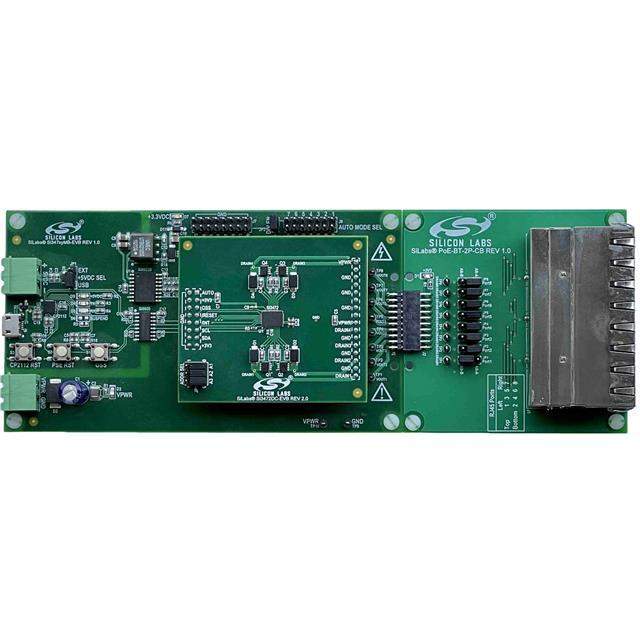

The SI3472-KIT is an evaluation kit for the SI3472, a Power over Ethernet (PoE) Powered Device (PD) interface controller from Skyworks Solutions. This kit is designed to help engineers evaluate the features and performance of the SI3472 and to facilitate the design of PoE-enabled devices. The SI3472 is a highly integrated device that complies with the IEEE 802.3af/at standards, making it suitable for various PoE applications.

Applications:

• IP Phones: Used in IP phones to receive power and data over a single Ethernet cable.
• Security Cameras: Employed in security cameras for easy installation and power management.
• Wireless Access Points: Utilized in wireless access points to simplify power distribution.
• IoT Devices: Integrated into Internet of Things (IoT) devices for remote power and data connectivity.
• Industrial Automation: Used in industrial control systems for robust and reliable power delivery.

Features (of SI3472):

• IEEE 802.3af/at Compliance: Complies with the industry-standard PoE specifications.
• Integrated PD Interface: Includes all necessary components for PoE functionality.
• Low Power Consumption: Designed for efficient power usage in PoE devices.
• Overload Protection: Provides protection against overcurrent and overvoltage conditions.
• Under-Voltage Lockout (UVLO): Ensures proper operation by preventing startup at low voltage.

Benefits:

• Simplified PoE Design: The kit simplifies the design and evaluation of PoE-enabled devices.
• Reduced Component Count: Integrates multiple functions into a single chip, reducing the number of external components.
• Enhanced System Reliability: Overload protection and UVLO ensure robust and reliable operation.
• Cost-Effective Solution: Provides a cost-efficient solution for PoE applications.
• Faster Time-to-Market: The evaluation kit helps accelerate the development process.

Technical Specifications:

The SI3472 supports both IEEE 802.3af (15.4W) and IEEE 802.3at (25.5W) power levels. It includes an integrated detection and classification mechanism to identify itself as a PoE PD to the Power Sourcing Equipment (PSE). The device operates with a wide input voltage range, typically from 36V to 57V. The SI3472-KIT includes the SI3472 chip along with necessary supporting components and connectors for easy evaluation. It also includes documentation and example designs to help engineers get started quickly. The operating temperature range is typically from -40°C to +85°C.

Note: Always refer to the official Skyworks Solutions datasheet for the most accurate and up-to-date specifications, application guidelines, and design considerations when using the SI3472-KIT in your PoE designs.
