Same model may have multiple batches, images only for reference.

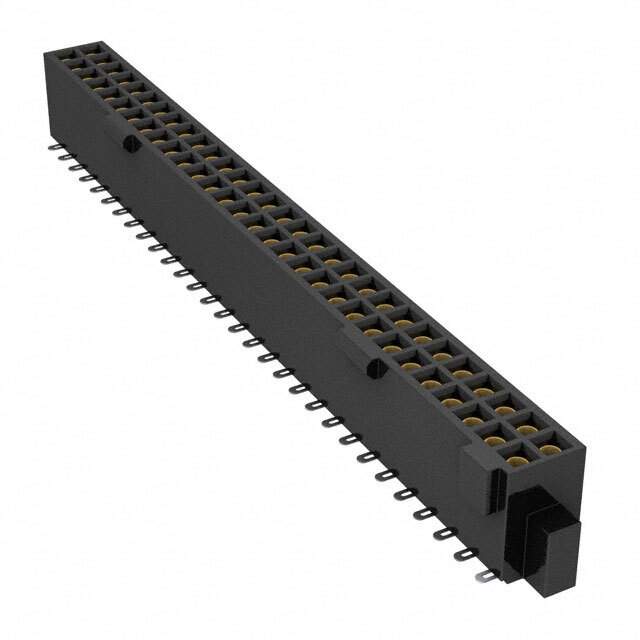

SFML-130-02-S-D Real Image
Same model may have multiple batches, images only for reference.

SFML-130-02-S-D

Part No SFML-130-02-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFML-130-02-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFML
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 60
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Base Product Number SFML-130
Other Names SFML13002SD,SAM8723
Standard Package 13
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285443-SFML-130-02-S-D
Ultra Librarian 3D Model Ultra Librarian SFML-130-02-S-D CAD Model

Description

The Tiger Eye™ SFML series from Samtec Inc. is a rectangular connector that provides a reliable and secure connection.

  • Connector Type: Receptacle
  • Positions: 60
  • Contact Type: Female Socket
  • Positions Loaded: All
  • Rows: 2
  • Pitch: 0.050" (1.27mm)
  • Connection Style: Board to board or cable
  • Insulation Material: Liquid crystal polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Contact Finish Mating: Gold
  • Contact Finish Post: Tin
  • Contact Thickness: 30.0µin (0.76µm)
  • Current Rating: 3.2A per contact
  • Voltage Rating: 250VAC
  • Temperature Range: -55°C ~ 125°C
  • Package: Tube
  • Standard Package: 13
