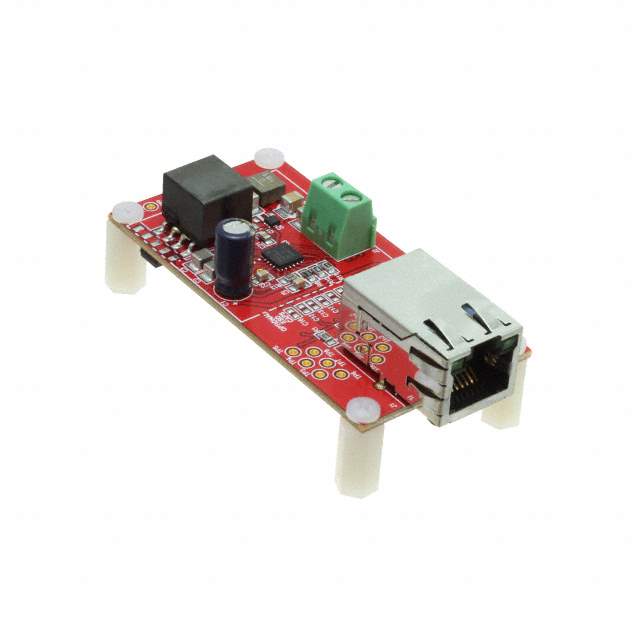

The SI3406FBC2-KIT is an evaluation kit from Skyworks Solutions (formerly Silicon Labs) designed to evaluate the performance of the Si3406 Power over Ethernet (PoE) Powered Device (PD) controller. This kit provides a comprehensive platform for engineers to design and test high-power PoE applications.

Applications:

• High-Power IP Phones: Powering advanced IP phones with increased power demands.
• High-Performance Wireless Access Points: Providing power to wireless access points requiring higher power levels.
• Pan-Tilt-Zoom (PTZ) IP Cameras: Supplying power to PTZ IP surveillance cameras via PoE.
• Building Automation Systems: Delivering power to various devices in building automation applications.
• Industrial Automation: Powering industrial equipment requiring higher power levels over Ethernet.

Features:

• Si3406 PoE PD Controller: Integrated PoE PD controller for managing high-power delivery.
• IEEE 802.3at Compliance: Compliant with the IEEE 802.3at PoE+ standard for high-power applications.
• Adjustable Output Voltage: Allows adjustment of the output voltage to meet application requirements.
• Integrated Bridge Rectifier: Provides an efficient bridge rectifier for AC to DC conversion.
• Comprehensive Documentation: Includes detailed schematics, layout, and application notes.

Benefits:

• Easy Evaluation: Simplifies the evaluation process of the Si3406 PoE PD controller.
• Rapid Prototyping: Accelerates the development of high-power PoE applications.
• IEEE Compliance: Ensures compatibility with existing PoE+ infrastructure.
• Efficient Power Delivery: Provides efficient high-power delivery over Ethernet cables.
• Reduced Cabling: Eliminates the need for separate power cables, reducing cabling costs.

The SI3406FBC2-KIT from Skyworks Solutions is designed to facilitate the evaluation and implementation of the Si3406 Power over Ethernet (PoE) Powered Device (PD) controller, particularly for applications demanding higher power levels. It complies with the IEEE 802.3at (PoE+) standard, ensuring compatibility with PoE+ infrastructure. This evaluation kit is especially well-suited for powering devices like high-performance wireless access points, pan-tilt-zoom (PTZ) IP cameras, and other applications requiring more than the standard PoE power budget. The kit allows developers to easily adjust the output voltage to match their specific requirements, providing design flexibility. Its integrated bridge rectifier efficiently converts AC power from the Ethernet cable to DC, and comprehensive documentation is included to accelerate the design process. By employing the Si3406, engineers can eliminate the need for dedicated power cabling, reducing installation costs and complexity. In addition to efficient power delivery, the Si3406 includes robust protection features such as overvoltage protection, overcurrent protection, and thermal shutdown, ensuring the reliable operation of connected devices.
