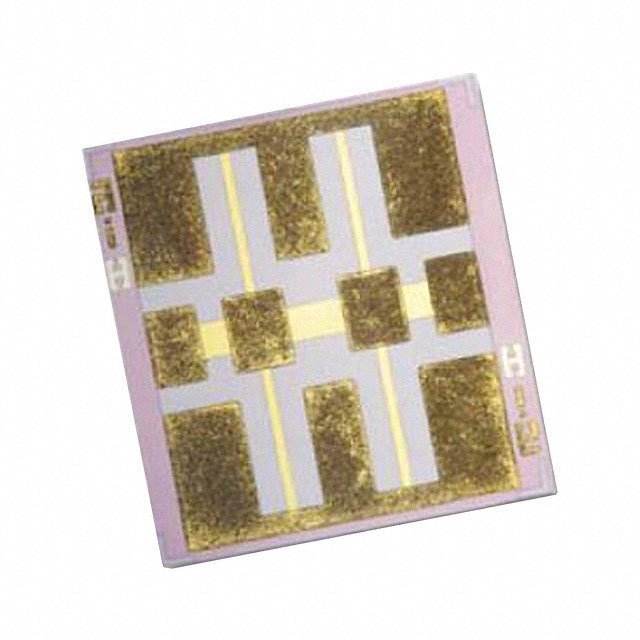

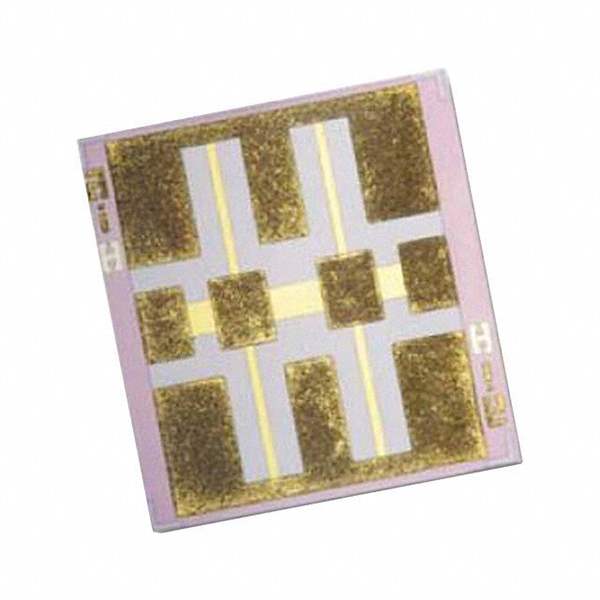

ATN3580-06 Skyworks Solutions Inc.
Same model may have multiple batches, images only for reference.

ATN3580-06

Part No ATN3580-06
Manufacturer Skyworks Solutions Inc.
Catalog Attenuators
Description RF ATTENUATOR 6DB MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Attenuators
Mfr Skyworks Solutions Inc.
Series ATN3580
Package Tray
Product Status Active
Attenuation Value 6dB
Frequency Range 100 MHz ~ 40 GHz
Power (Watts) 1W
Package / Case Module
Base Product Number ATN3580
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 713571-ATN3580-06
Ultra Librarian 3D Model Ultra Librarian ATN3580-06 CAD Model

Description

The ATN3580-06 is an attenuator module from Skyworks Solutions Inc. It is part of the ATN3580 series and is designed for RF and wireless applications.

  • Attenuation: 6dB
  • Power: Up to 1W
  • Frequency Range: 100 MHz to 40 GHz
  • Mounting: Surface Mount
  • Packaging: Tray
  • Standard Package: 100 pcs
  • Compliant with: ECCN regulations
  • MSL Level: High
