Same model may have multiple batches, images only for reference.

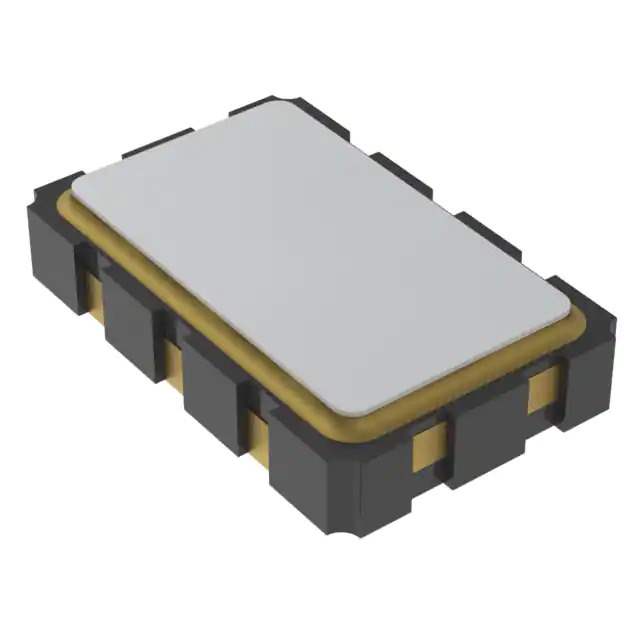

511BBA100M000BAG Real Image
Same model may have multiple batches, images only for reference.

511BBA100M000BAG

Part No 511BBA100M000BAG
Manufacturer Skyworks Solutions Inc.
Catalog Oscillators
Description XTAL OSC XO 100.0000MHZ LVDS SMD
Datasheet
511BBA100M000BAG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Skyworks Solutions Inc.
Series Si511
Package Strip
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 23mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.050" (1.28mm)
Current - Supply (Disable) (Max) 18mA
Base Product Number 511BBA
Standard Package 200 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 848333-511BBA100M000BAG
Ultra Librarian 3D Model Ultra Librarian 511BBA100M000BAG CAD Model

Description

The Si511 is a crystal oscillator (XO) integrated circuit (IC) in the crystals, oscillators, and resonators category and is from Skyworks Solutions Inc.

  • Category: Crystals, Oscillators, and Resonators
  • Type: Crystal Oscillator (XO)
  • Package: Strip
  • Standard Package: 200 pieces
  • Product Status: Active
  • ECCN: EAR99
  • Base Product Number: 511BBA
  • Frequency: 100 MHz
  • Frequency Stability: ±25ppm
  • Voltage Supply: 3.3V
  • Maximum Supply Current: 23mA
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 85°C
  • HTSUS: 8542.39.0001
