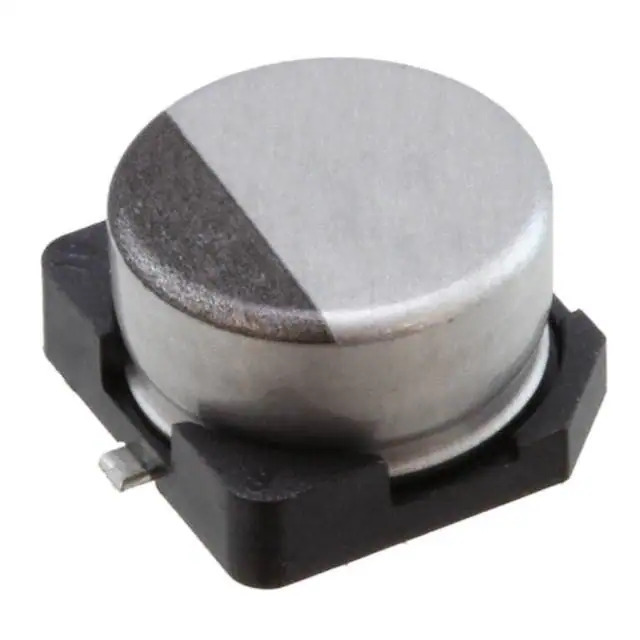

Same model may have multiple batches, images only for reference.

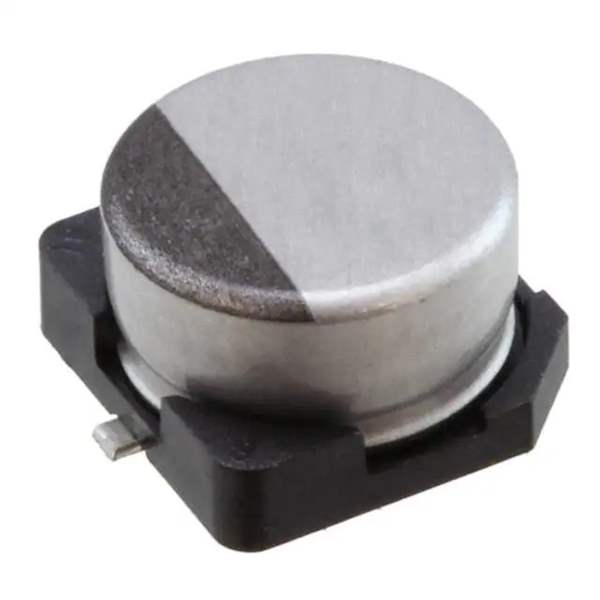

UZR1V220MCL1GB Nichicon
Same model may have multiple batches, images only for reference.

UZR1V220MCL1GB

Part No UZR1V220MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 35V SMD / 22 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 85°C
Datasheet
UZR1V220MCL1GB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UZR
Package Tape & Reel
Product Status Last Time Buy
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 46 mA @ 120 Hz
Ripple Current @ High Frequency 69 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.156" (3.95mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360214-UZR1V220MCL1GB
Ultra Librarian 3D Model Ultra Librarian UZR1V220MCL1GB CAD Model

Description

The UZR1V220MCL1GB is a radial, can-type surface mount aluminum electrolytic capacitor from Nichicon's UZR series.

  • Capacitance: 22 μF
  • Rated Voltage: 35 V
  • Tolerance: ±20%
  • Application: Automotive
  • Ripple Current (Low Frequency): 46 mA @ 120 Hz
  • Ripple Current (High Frequency): 69 mA @ 10 kHz
  • Size: 0.248" Dia (6.30mm) and a height of 0.156" (3.95mm)
  • Mounting Type: Surface Mount
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Lifetime: 1000 hours @ a maximum temperature of 85°C
  • Polarization: Polarized
  • REACH: Unaffected
  • ECCN: EAR99
