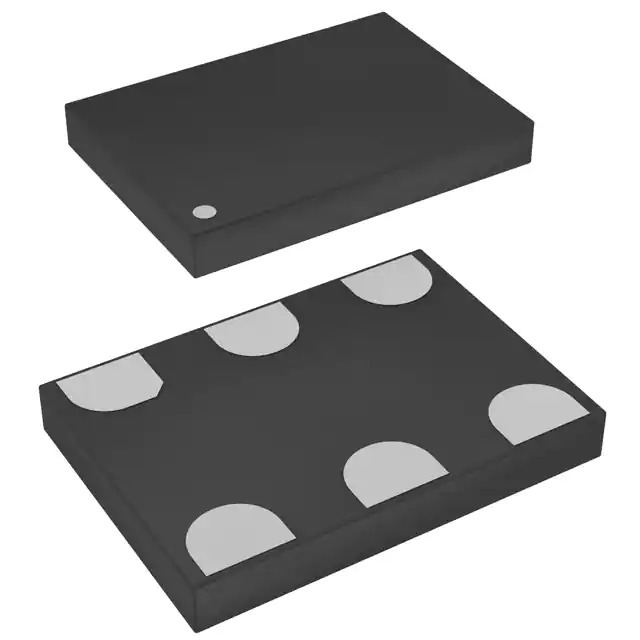

Same model may have multiple batches, images only for reference.
SIT9121AC-2D2-33E156.250000 SiTIME
Same model may have multiple batches, images only for reference.

SIT9121AC-2D2-33E156.250000

Part No SIT9121AC-2D2-33E156.250000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 156.2500MHZ LVDS SMD / 156.25 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT9121
Package Strip
Product Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -20°C ~ 70°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 55mA
Ratings -
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366481-SIT9121AC-2D2-33E156.250000
Ultra Librarian 3D Model Ultra Librarian SIT9121AC-2D2-33E156.250000 CAD Model

Description

The SiTime SIT9121AC-2D2-33E156.250000 is a high-quality XO (Standard) oscillator with a frequency of 156.25 MHz.

  • Frequency: 156.25 MHz
  • Operating Temperature: -20°C ~ 70°C
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Height: 0.039" (1.00mm)
  • Voltage - Supply: 3.3V
  • Current - Supply (Max): 55mA
  • Base Resonator: MEMS
  • Output: LVDS
  • Frequency Stability: ±25ppm
  • Series: SiT9121
  • Product Status: Active
