Same model may have multiple batches, images only for reference.

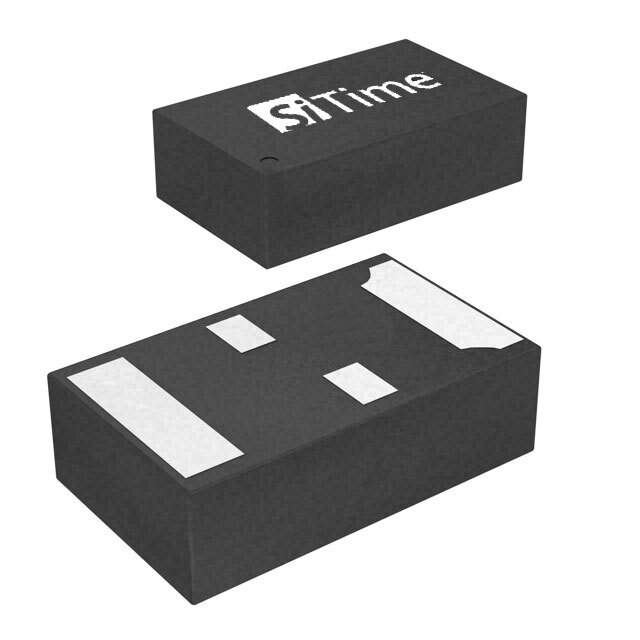

SIT1533AC-H5-D14-32.768D Real Image
Same model may have multiple batches, images only for reference.

SIT1533AC-H5-D14-32.768D

Part No SIT1533AC-H5-D14-32.768D
Manufacturer SiTIME
Catalog Oscillators
Description OSC MEMS 32.768KHZ LVCMOS SMD
Datasheet
SIT1533AC-H5-D14-32.768D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer SiTIME
Packaging Reel - TR
Status Active
Type MEMS (Silicon)
Frequency 32.768kHz
Output LVCMOS
Supply Voltage - Operating 1.2 V to 3.63 V
Frequency Stability +75ppm
Temperature Range - Operating -10°C to 70°C
Current - Supply (Max) 1.3μA
Mounting SMD (SMT)
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Win Source Part Number 1096507-SIT1533AC-H5-D14-32.768D
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian SIT1533AC-H5-D14-32.768D CAD Model

Description

The SiTIME 1096507-SIT1533AC-H5-D14-32.768D is a MEMS (Silicon) oscillator that comes in reel packaging. Bold the product name (e.g., 1096507-SIT1533AC-H5-D14-32.768D) and manufacturer (e.g., SiTIME).

  • Type: MEMS (Silicon) Oscillator
  • Packaging: Reel
  • Frequency: 32.768kHz
  • Output: LVCMOS
  • Frequency Stability: +75ppm
  • Maximum Supply Current: 1.3μA
  • Application: Timing and Frequency Control
  • Package Quantity: 3k pcs
