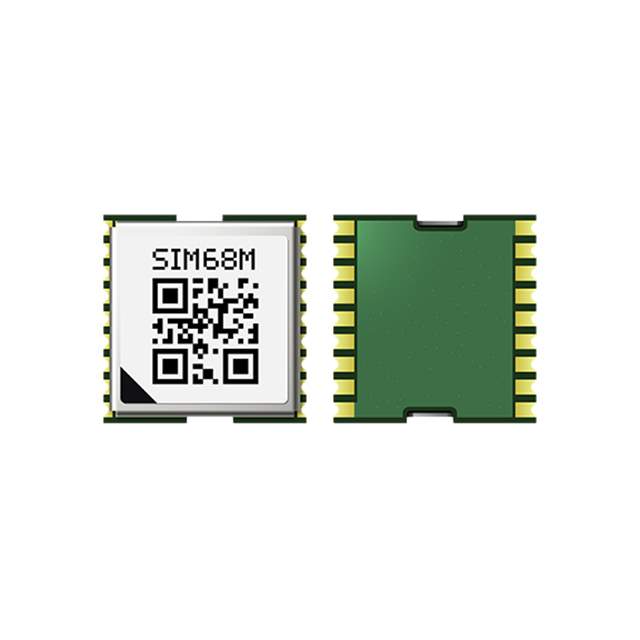

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr SIMCom Wireless Solutions Limited
Package Tray
RF Family/Standard Navigation
Protocol Galileo, GLONASS, GPS, GNSS
Sensitivity -165dBm
Serial Interfaces UART
Antenna Type Antenna Not Included
Voltage - Supply 2.8V ~ 4.3V
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 18-SMD Module
MSL Level 3 (168 Hours)
ECCN 7A994
HTSUS 8517.62.0090
Other Names S2-105ZC-Z30QG,S2-105ZC,3781-SIM68M
Standard Package 1,000
Win Source Part Number 1019454-SIM68M
Ultra Librarian 3D Model Ultra Librarian SIM68M CAD Model

Description

The SIM68M is a GNSS module that is manufactured by SIMCom Wireless Solutions Limited.

  • Protocols: Galileo, GLONASS, GPS, and GNSS
  • Supply Voltage: 2.8V to 4.3V
  • Sensitivity: -165dBm
  • Data Rate: Up to 921.6 kbps
  • Package: 18-SMD
  • Mounting: Surface Mount
