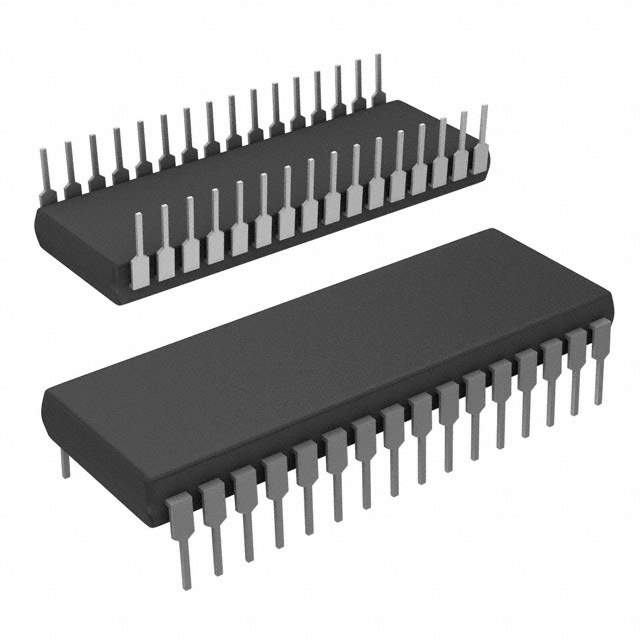

The SST39SF040-70-4C-PHE-ND is a 4 Mbit Multi-Purpose Flash (MPF) memory device manufactured by Silicon Storage Technology (SST), now Microchip Technology. This Flash memory is designed for applications requiring non-volatile storage with fast read access times.

Applications

• Embedded systems: Stores code and data in embedded microcontrollers and processors.
• Data logging: Used in data loggers for storing sensor data.
• Audio storage: Stores audio files in portable audio players.
• Firmware storage: Used to store firmware in various electronic devices.
• Boot memory: Stores boot code for microprocessors and microcontrollers.

Features

• 4 Mbit (512K x 8) memory organization: Provides ample storage capacity.
• Fast read access time (70 ns): Enables high-speed data retrieval.
• Low power consumption: Minimizes power dissipation, extending battery life in portable devices.
• Sector erase capability: Allows for selective erasure of memory blocks.
• Endurance: Capable of withstanding a large number of erase/program cycles.
• Single 5V power supply: Simplifies system design and reduces component count.

Benefits

• High performance: Fast read access time enables efficient data retrieval.
• Low power consumption: Extends battery life in portable applications.
• Flexibility: Sector erase capability allows for efficient memory management.
• Reliability: High endurance ensures data integrity over a long period.
• Ease of use: Single 5V power supply simplifies system design.

Additional Details

The SST39SF040-70-4C-PHE-ND is designed for applications requiring a combination of high performance, low power, and reliability. It features a JEDEC standard pinout for easy integration into existing systems. Detailed specifications, including timing characteristics, power consumption, and programming information, can be found in the device's datasheet from Microchip Technology (formerly SST). The '-70' indicates the access time (70ns), '-4C' refers to the temperature grade, and 'PHE' likely denotes the package type (likely a PDIP or similar through-hole package). The '-ND' suffix may be a distributor-specific code.
