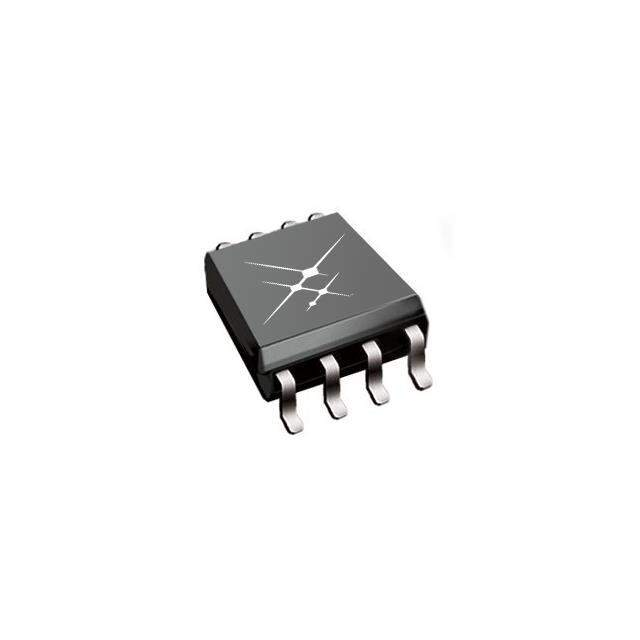

SI8420AB-D-IS Real Image
Same model may have multiple batches, images only for reference.

SI8420AB-D-IS

Part No SI8420AB-D-IS
Manufacturer Silicon Labs
Catalog Digital Isolators
Description DGTL ISO 2.5KV GEN PURP 8SOIC / Digital Isolator CMOS 2-CH 1Mbps Automotive 8-Pin SOIC N Tube
Datasheet
SI8420AB-D-IS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Silicon Labs
Packaging Tube
Technology Capacitive Coupling
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Channel Type Unidirectional
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Minimum) 25kV/μs (Typ)
Data Rate 1Mbps
Propagation Delay tpLH / tpHL (Maximum) 35ns, 35ns
Pulse Width Distortion (Maximum) 25ns
Rise / Fall Time (Typ) 3.8ns, 2.8ns
Operating Supply Voltage 2.7 V ~ 5.5 V
Operating Temperature Range -40°C ~ 125°C
Package 8-SOIC (0.154", 3.90mm Width)
Manufacturer Package 8-SOIC
Win Source Part Number 794346-SI8420AB-D-IS
Popularity Medium
Supply and Demand Status Limited
Family Name Si8420A
Introduction Date October 11, 2000
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian SI8420AB-D-IS CAD Model

Description

The Silicon Labs SI8420AB-D-IS is a medium popularity electronic component. It is an 8-SOIC (0.154", 3.90mm Width) package with a technology of Capacitive Coupling.

  • Voltage - Isolation: 2500Vrms
  • Data Rate: 1Mbps
  • Channel Type: Unidirectional
  • Number of Channels: 2
  • Rise/Fall Time (typ): 3.8ns, 2.8ns
  • Operating Temperature Range: -40°C ~ 125°C
  • Supply Voltage: 2.7 V ~ 5.5 V
  • Manufacturer: Silicon Labs
  • Win Source Part Number: 794346-SI8420AB-D-IS
  • Manufacturer Homepage: www.silabs.com
