Same model may have multiple batches, images only for reference.

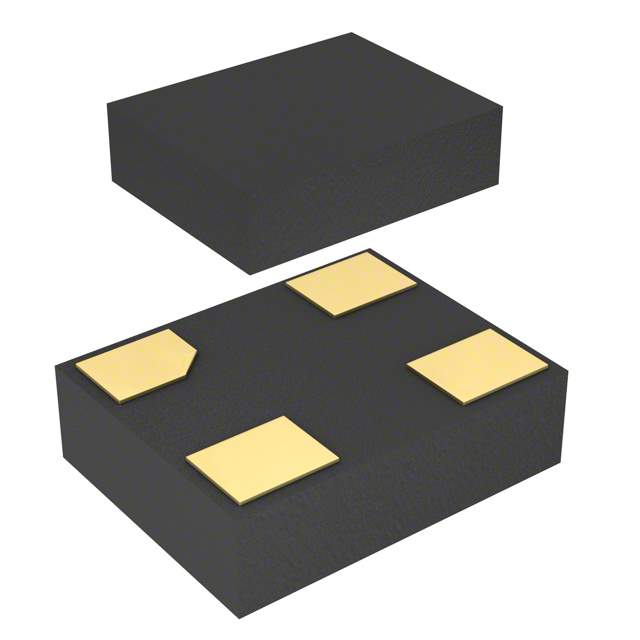

501JAA25M0000CAFR Real Image
Same model may have multiple batches, images only for reference.

501JAA25M0000CAFR

Part No 501JAA25M0000CAFR
Manufacturer Silicon Labs
Catalog Oscillators
Description OSC CMEMS 25.0000MHZ LVCMOS / 25 MHz CMEMS® LVCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Silicon Labs
Series Si501
Package Tape & Reel
Product Status Obsolete
Base Resonator MEMS
Type CMEMS®
Frequency 25 MHz
Function Enable/Disable
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 4.9mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 4.9mA
Standard Package 2,500
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1338065-501JAA25M0000CAFR
Ultra Librarian 3D Model Ultra Librarian 501JAA25M0000CAFR CAD Model

Description

The Silicon Labs Si501 is a CMEMS oscillator from the Si501 series.

  • Frequency: 25MHz
  • Frequency Stability: ±50ppm
  • Current Supply: 4.9mA
  • Voltage Supply: 3.3V
  • Height: 0.035"
  • Size Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • ECCN: EAR99
