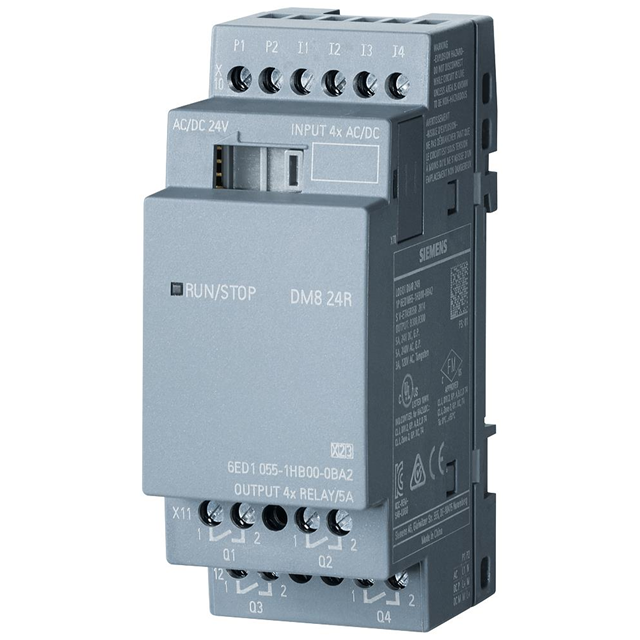

6ED1055-1HB00-0BA2 Real Image
Same model may have multiple batches, images only for reference.

6ED1055-1HB00-0BA2

Part No 6ED1055-1HB00-0BA2
Manufacturer Siemens
Catalog Industrial Equipment
Description Extension Module, LOGO! 8, DM8 24R, 24VAC/VDC, 4DI, 4DO, (SII)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Module
Current Rating 5 A
Depth 58 mm
Length 90 mm
Max Operating Temperature 55 °C
Min Operating Temperature 0 °C
Mount DIN Rail
Number of Inputs 4
Number of Outputs 4
Operating Supply Voltage 24 V
Output Current 5 A
Output Type Digital
REACH SVHC No SVHC
RoHS Compliant
Width 35.5 mm
Win Source Part Number 1190977-6ED1055-1HB00-0BA2
Categories Industrial Equipment
Manufacturer Siemens
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 6ED1055-1HB00-0BA2 CAD Model

Description

The Siemens 6ED1055-1HB00-0BA2 is an industrial equipment electronic component that is manufactured by Siemens.

  • Manufacturer: Siemens
  • Category: Modules
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Current Rating: 5 A
  • Length: 90 mm
  • Inputs/Outputs: 4
  • Output Type: Digital
  • Operating Supply Voltage: 24 V
  • Mounting: DIN Rail
  • Width: 35.5 mm
  • Depth: 58 mm
  • Operating Temperature: 0°C to 55°C
  • RoHS Compliant: Yes
