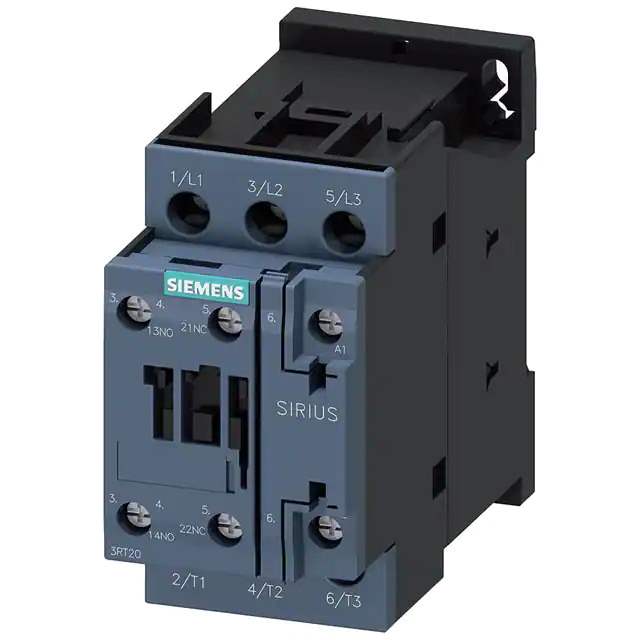

3RT20261AV60 Real Image
Same model may have multiple batches, images only for reference.

3RT20261AV60

Part No 3RT20261AV60
Manufacturer Siemens
Catalog Contactors (Electromechanical)
Description CONTACTOR S0 25A 480VAC 1NO/1NC
Datasheet
3RT20261AV60 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Contactors (Electromechanical)
Mfr Siemens
Series 3RT2
Package Bulk
Product Status Active
Mounting Type Chassis Mount, DIN Rail
Coil Voltage 480VAC
Contact Form 3PST-NO (3 Form A)
Contact Rating (Current) 25 A
Switching Voltage 690VAC - Max
Features Auxiliary Contacts
Termination Style Screw Terminal
Temperature Range - Operating -25°C ~ 60°C
Must Operate Voltage 408 VAC
Operate Time 40 ms
Release Time 16 ms
Coil Power 87VA
Base Product Number 3RT2026
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0065
Win Source Part Number 854830-3RT20261AV60
Ultra Librarian 3D Model Ultra Librarian 3RT20261AV60 CAD Model

Description

The 854830-3RT20261AV60 is a contactor relay from Siemens.

  • Series: 3RT2
  • Contact Form: 3PST-NO (3 Form A)
  • Features: Auxiliary Contacts
  • Coil Voltage: 480VAC
  • Switching Voltage: 690VAC (maximum)
  • Operate Time: 40 ms
  • Release Time: 16 ms
  • Mounting: Chassis Mount, DIN Rail
  • Temperature Range: -25°C to 60°C
