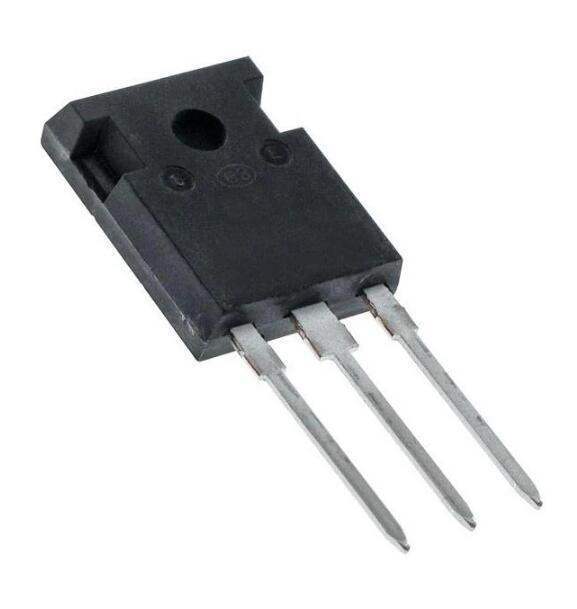

Same model may have multiple batches, images only for reference.
D20LC20U-7000 Shindengen
Same model may have multiple batches, images only for reference.

D20LC20U-7000

Part No D20LC20U-7000
Manufacturer Shindengen
Catalog Diodes, Rectifiers - Single
Description Small Signal Switching Diodes VRM=200 IFSM=150
Datasheet
D20LC20U-7000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Shindengen
Category Diodes, Rectifiers - Single
Mounting Style Through Hole
Peak Reverse Voltage 200 V
Max Surge Current 150 A
If - Forward Current 20 A
Configuration Dual
Recovery Time 35 ns
Vf - Forward Voltage 980 mV
Ir - Reverse Current 10 uA
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Packaging Bulk
Ultra Librarian 3D Model Ultra Librarian D20LC20U-7000 CAD Model

Description

Small Signal Switching Diodes VRM=200 IFSM=150
