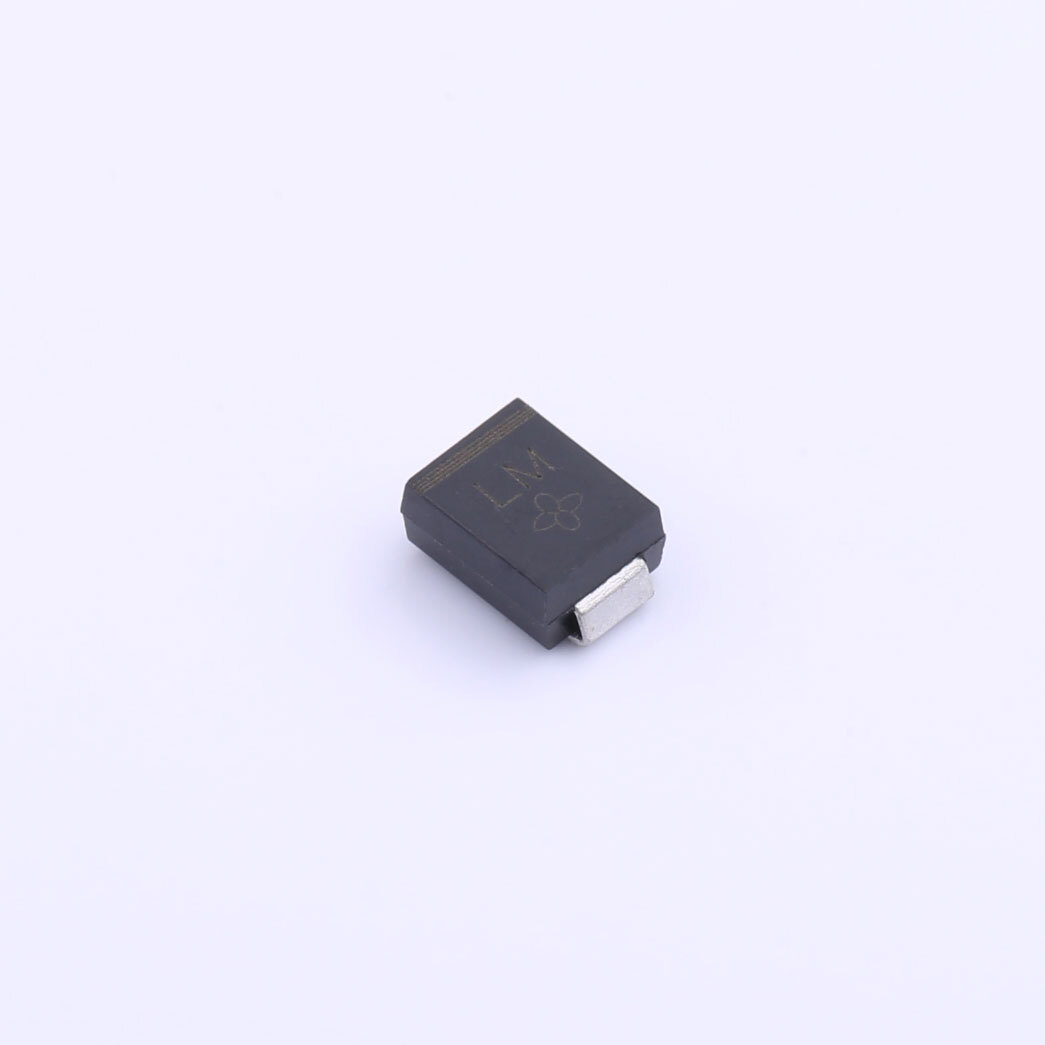

Same model may have multiple batches, images only for reference.
SMBJ15A ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMBJ15A

Part No SMBJ15A
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog TVS - Diodes
Description 24.6A 24.4V 16.7V 15V DO-214AA
Datasheet
SMBJ15A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329918-SMBJ15A
Series *
Package Tape & Reel (TR)
Product Status Active
Grade -
Package Cut Tape (CT)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 15V
Voltage - Breakdown (Min) 16.7V
Voltage - Clamping (Max) @ Ipp 24.4V
Current - Peak Pulse (10/1000µs) 24.6A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Operating Temperature -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA
Package Tape & Reel (TR);Cut Tape (CT)
Power Line Protection Yes
Operating Temperature -55°C ~ 150°C
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMBJ)
Operating Temperature -55°C ~ 150°C (TJ)
Supplier Device Package DO-214AA (SMB)
Current - Peak Pulse (10/1000µs) 24A
Package Strip
Current - Peak Pulse (10/1000µs) 24.59A
Package / Case DO-214AA (SMB)
Ultra Librarian 3D Model Ultra Librarian SMBJ15A CAD Model
