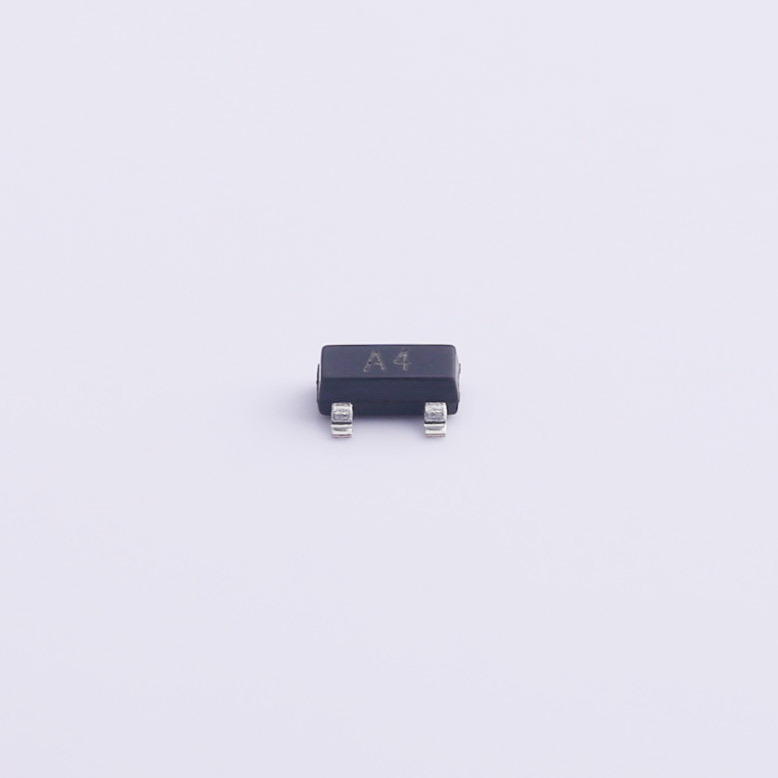

BAV70

Name: BAV70
Brand: ShenZhen SlkorMicro Semicon Co. Ltd
SKU: WS1329863
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BAV70
Manufacturer	ShenZhen SlkorMicro Semicon Co. Ltd
Catalog	Diodes, Rectifiers - Single
Description	75V 1 pair of common cathodes 1.25V 4ns 200mA SOT-23
Datasheet	BAV70 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1329863-BAV70
Package	Tape & Reel (TR);Cut Tape (CT)
Product Status	Obsolete
Diode Configuration	1 Pair Common Cathode
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	80V
Current - Average Rectified (Io) (per Diode)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	1.25V @ 150mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	100nA @ 80V
Operating Temperature - Junction	150°C (Max)
Grade	-
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3
Product Status	Active
Voltage - DC Reverse (Vr) (Max)	75V
Current - Average Rectified (Io) (per Diode)	215mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	2.5µA @ 75V
Operating Temperature - Junction	-55°C ~ 150°C
Supplier Device Package	SOT-23-3 (TO-236)
Package	Tape & Reel (TR)
Voltage - DC Reverse (Vr) (Max)	70V
Current - Average Rectified (Io) (per Diode)	250mA
Voltage - Forward (Vf) (Max) @ If	1V @ 50mA
Reverse Recovery Time (trr)	6ns
Current - Reverse Leakage @ Vr	2.5µA @ 70V
Operating Temperature - Junction	-55°C ~ 125°C
Supplier Device Package	SOT-23
Current - Average Rectified (Io) (per Diode)	200mA
Package	Cut Tape (CT)
Operating Temperature - Junction	150°C
Package	Bulk
Current - Average Rectified (Io) (per Diode)	300mA
Current - Reverse Leakage @ Vr	50 µA @ 75 V
Grade	Automotive
Qualification	AEC-Q101
Package / Case	SC-70, SOT-323
Supplier Device Package	SOT-323
Current - Average Rectified (Io) (per Diode)	150mA
Operating Temperature - Junction	-65°C ~ 150°C
Ultra Librarian 3D Model	Ultra Librarian BAV70 CAD Model
