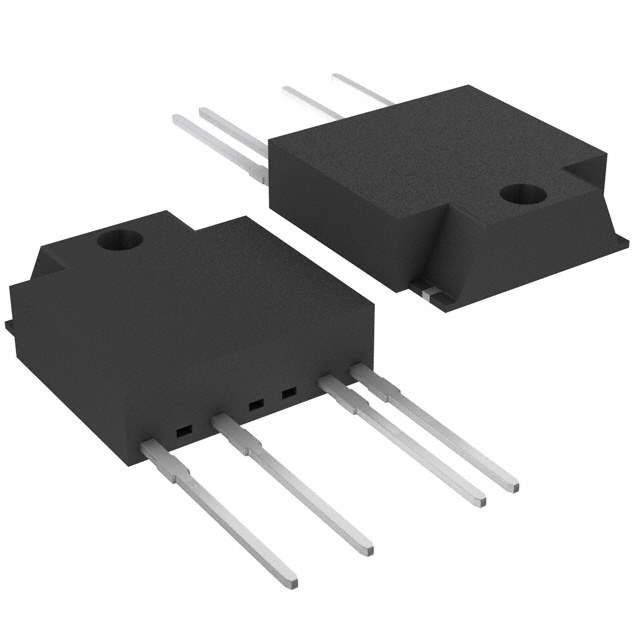

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Sharp Microelectronics
Series S116
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC
Voltage - Input 1.2VDC
Voltage - Load 80 V ~ 120 V
Load Current 16 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Other Names 425-2398-5
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0060
Win Source Part Number 1237257-S116S01F
Ultra Librarian 3D Model Ultra Librarian S116S01F CAD Model

Description

The S116S01F is a solid-state relay designed for through-hole mounting and manufactured by Sharp Microelectronics.

  • Mounting: Through-hole
  • Circuit: SPST-NO (1 Form A)
  • Load Current: 16A
  • Voltage Load: 80V to 120V
  • Packaging: Tube
  • Standard Package: 200
  • Voltage Input: 1.2VDC
  • Output Type: AC
  • Package/Case: 4-SIP
  • Supplier Device Package: 4-SIP
