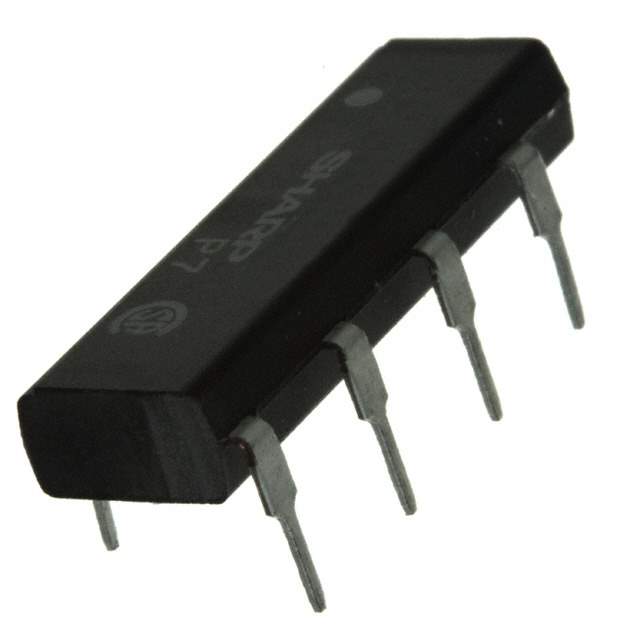

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Sharp Microelectronics
Series S101
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 120 V
Load Current 1.5 A
Termination Style PC Pin
Package / Case 16-DIP (0.300", 7.62mm), 10 Leads
Supplier Device Package 16-DIP
Other Names 425-1207-5
Standard Package 25
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1237269-S101DH2
Ultra Librarian 3D Model Ultra Librarian S101DH2 CAD Model

Description

The Sharp Microelectronics 1237269-S101DH2 is a solid state relay with a PC pin termination style.

  • Series: S101
  • Termination Style: PC pin
  • Output Type: AC zero cross
  • Circuit: SPST-NO (1 Form A)
  • Load Current: 1.5 A
  • Voltage Input: 1.2VDC
  • Voltage Load: 0 V to 120 V
  • Mounting: Through hole
  • Package/Case: 16-DIP (0.300", 7.62mm), 10 leads
  • Product Status: Obsolete
  • RoHS: Non-compliant
