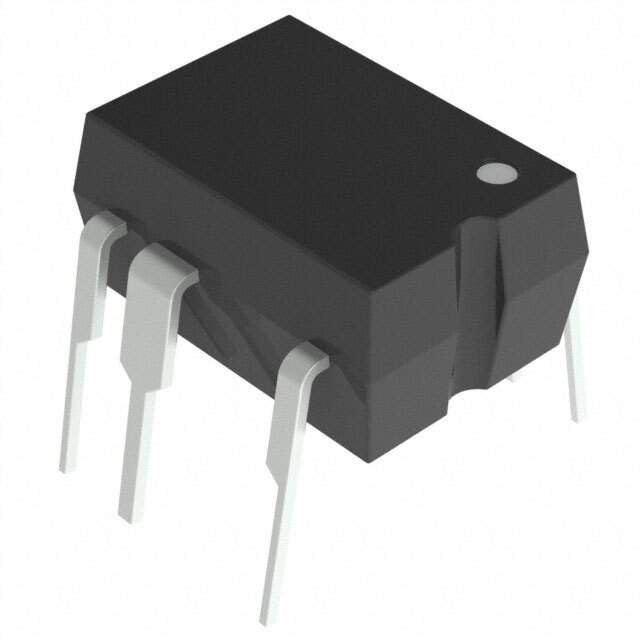

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube
Part Status Obsolete(EOL)
Output Type Triac, Power
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 4000Vrms
Voltage - Off State 600V
Static dV/dt (Minimum) 100V/μs
Current - LED Trigger (Ift) (Maximum) 5mA
Current - On State (It (RMS)) (Maximum) 900mA
Current - Hold (Ih) 25mA
Turn On Time 50μs (Maximum)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 50mA
Operating Temperature Range -30°C ~ 85°C
Mounting Style Through Hole
Package 8-DIP (0.300", 7.62mm), 7 Leads
Manufacturer Package 8-DIP
Approvals CSA, UR, VDE
Win Source Part Number 792468-PR39MF22YSZF
Popularity Medium
Supply and Demand Status Limited
Family Name PR39MF22YSZ
Introduction Date March 28, 2004
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PR39MF22YSZF CAD Model

Description

The PR39MF22YSZF is an electronic component manufactured by Sharp Microelectronics. It is an obsolete(EOL) part with an estimated EOL date. The component is suitable for various applications requiring high-performance power and isolation.
