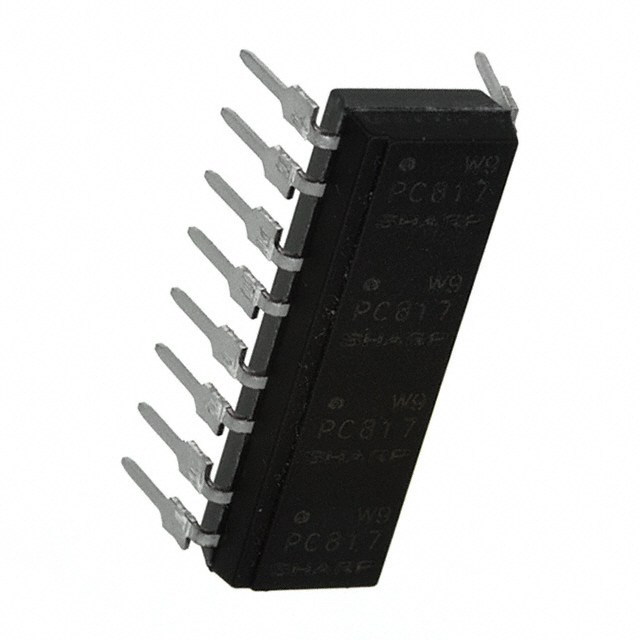

PC847XJ0000F Sharp Microelectronics PC847XJ0000F Real Image PC847XJ0000F real image4465 PC847XJ0000F label picture 2 PC847XJ0000F real image PC847XJ0000F real image 2
Same model may have multiple batches, images only for reference.
PC847XJ0000F Sharp Microelectronics PC847XJ0000F Real Image PC847XJ0000F real image4465 PC847XJ0000F label picture 2 PC847XJ0000F real image PC847XJ0000F real image 2
PC847XJ0000F Sharp Microelectronics PC847XJ0000F Real Image PC847XJ0000F real image4465 PC847XJ0000F label picture 2 PC847XJ0000F real image PC847XJ0000F real image 2
Same model may have multiple batches, images only for reference.

PC847XJ0000F

Part No PC847XJ0000F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV 4CH TRANS 16-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Channels 4
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 16-DIP
Win Source Part Number 061182-PC847XJ0000F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PC847
Introduction Date August 05, 2005
ECCN EAR99
Country of Origin China, Indonesia, Japan
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian PC847XJ0000F CAD Model

Description

The Sharp Microelectronics PC847XJ0000F is a 4-channel transistor output optocoupler with an isolation voltage of 5000Vrms.

  • Channels: 4
  • Isolation Voltage: 5000Vrms
  • Minimum DC Current Transfer Ratio: 50% @ 5mA
  • Maximum DC Current Transfer Ratio: 600% @ 5mA
  • Package/Case: 16-DIP
  • Temperature Range: -30°C to 100°C
  • Applications: power supplies, motor controls, and switching power supplies
