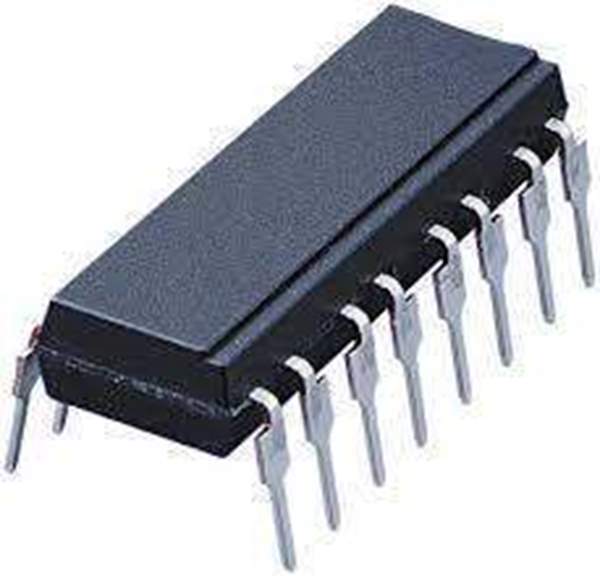

PC847X7J000F Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PC847X7J000F

Part No PC847X7J000F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV 4CH TRANS 16-DIP
Datasheet
PC847X7J000F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310091-PC847X7J000F
Category Isolators >Optoisolators >Transistor, Photovoltaic Output Optoisolators
Manufacturer Sharp Microelectronics
Packaging  Tube
Part Status Obsolete
Number of Channels 4
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 200% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Rise / Fall Time (Typ) 4µs, 3µs
Input Type DC
Ultra Librarian 3D Model Ultra Librarian PC847X7J000F CAD Model

Description

PC847XJ0000F Series contains an IRED optically coupled to a phototransistor. It is packaged in a 4-channel package, available in SMT gullwing lead-form option. Input-output isolation voltage(rms) is 5.0kV. Collector-emitter voltage is 80V and CTR is 50% to 600% at input current of 5mA
