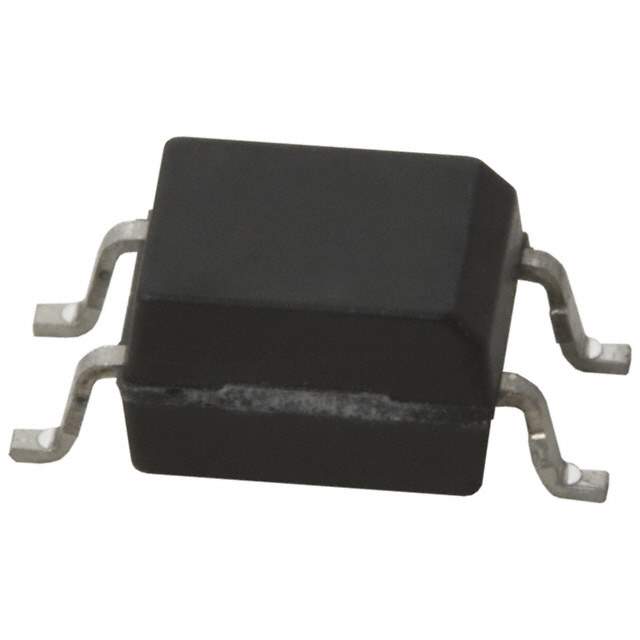

PC817X3NIP0F Real Image
Same model may have multiple batches, images only for reference.

PC817X3NIP0F

Part No PC817X3NIP0F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP SMD / OPTOISOLATOR 5KV TRANS 4SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 200% @ 5mA
Maximum DC Current Transfer Ratio 400% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 026434-PC817X3NIP0F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 2k pcs
Family Name PC817X3NIP0F
Introduction Date March 17, 2010
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PC817X3NIP0F CAD Model

Description

The PC817X3NIP0F from Sharp Microelectronics is an isolator IC that is designed for use in various electronic applications.

  • Package: 4-SMD
  • Mounting Type: Surface Mount Technology (SMT)
  • Isolation Voltage: 5000Vrms
  • Minimum DC Current Transfer Ratio: 200% @ 5mA
  • Channel Output Current: 50mA
  • Continuous Forward Current: 50mA max
  • Temperature Range: -30°C to 100°C
  • Status: Obsolete (EOL)
  • Supply: Limited
