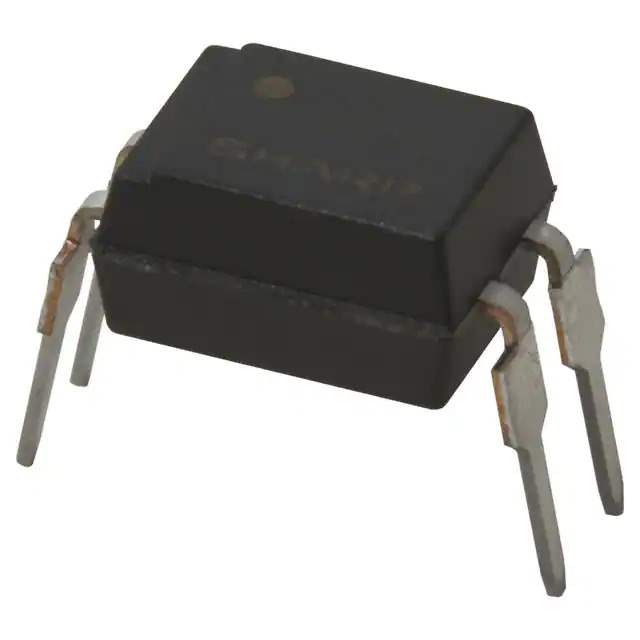

PC817X2NSZ9F Real Image
Same model may have multiple batches, images only for reference.

PC817X2NSZ9F

Part No PC817X2NSZ9F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description PHOTOCOUPLER / Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Datasheet
PC817X2NSZ9F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Sharp Microelectronics
Series PC817
Package Tube
Product Status Active
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 50% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Rise / Fall Time (Typ) 4µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C ~ 100°C
Mounting Type Through Hole
Package / Case 4-DIP (0.300", 7.62mm)
Supplier Device Package 4-DIP
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) Not Applicable
ECCN OBSOLETE
HTSUS 0000.00.0000
Win Source Part Number 269190-PC817X2NSZ9F
Ultra Librarian 3D Model Ultra Librarian PC817X2NSZ9F CAD Model

Description

The 269190-PC817X2NSZ9F is an optoisolator transistor with a photovoltaic output.

  • Output Type: Photovoltaic, Transistor
  • Series: PC817
  • Input Type: DC
  • Maximum Forward Current: 50 mA
  • Typical Forward Voltage: 1.2V
  • Rise Time: Approximately 4μs
  • Fall Time: Approximately 3μs
  • Channel Number: 1
  • Current Output: 50mA
  • Voltage Isolation: 5000Vrms
  • Minimum Current Transfer Ratio: 50% @ 5mA
  • Maximum Current Transfer Ratio: 600% @ 5mA
  • Maximum Output Voltage: 80V
  • Vce Saturation: 200mV
  • Operating Temperature Range: -30°C to 100°C
  • Status: Active
  • Manufacturer: Sharp Microelectronics
