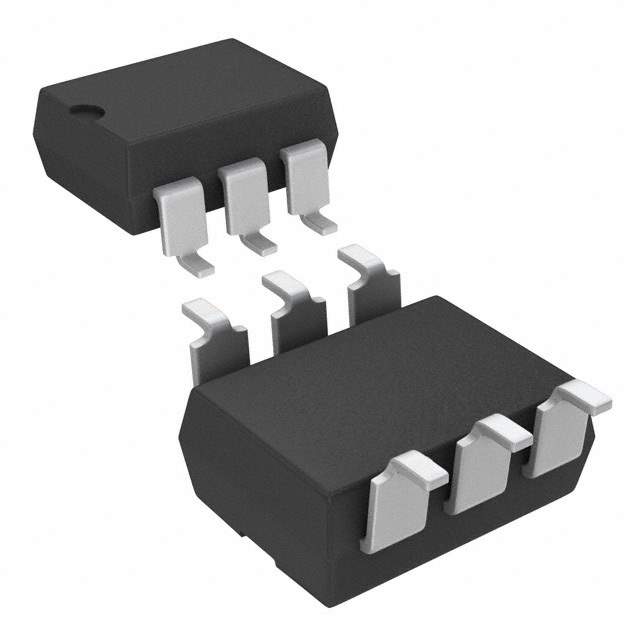

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer IXYS
Packaging Tube
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Minimum) 300% at 1mA
Current Transfer Ratio (Maximum) 30000% at 1mA
Turn On / Turn Off Time 8μs, 345μs
Input Type AC, DC
Output Type Darlington with Base
Maximum Output Voltage 30V
Voltage - Forward (Vf) 1.2V
Current - DC Forward (If) (Maximum) 100mA
Vce Saturation (Maximum) 1V
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 6-SMD, Gull Wing
Supplier Device Package 6-SMD
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1195902-LDA110S
Manufacturer Homepage www.clare.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LDA110S CAD Model

Description

The IXYS isolator is an output type Darlington with Base and an input type of AC, DC.

  • Output Type: Darlington with Base
  • Input Type: AC, DC
  • Current - Output/Channel: -
  • Voltage - Isolation: 3750Vrms
  • Mounting: SMD technology
  • Package: 6-SMD, Gull Wing
  • Maximum Output Voltage: 30V
  • Current - DC Forward (If) (Maximum): 100mA
  • Current Transfer Ratio (Minimum): 300% @ 1mA
  • Current Transfer Ratio (Maximum): 30000% @ 1mA
  • Vce Saturation (Maximum): 1V
  • Popularity: Medium
  • Supply and Demand Status: Balance
