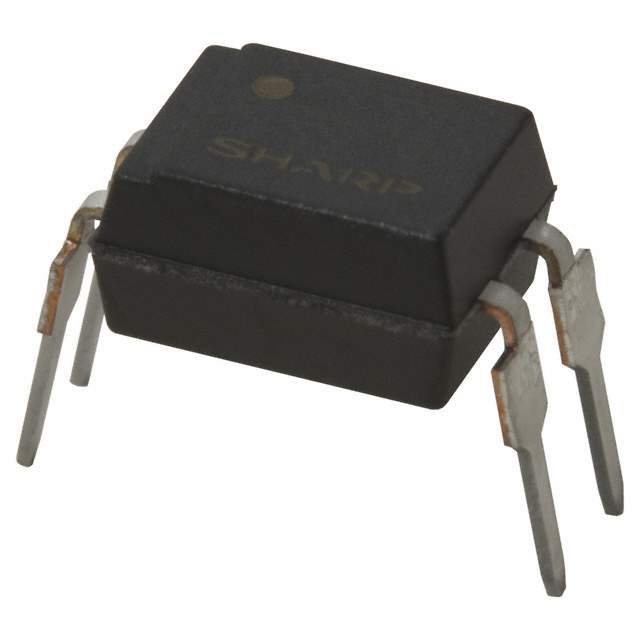

PC817X2CSZ9F Real Image
Same model may have multiple batches, images only for reference.

PC817X2CSZ9F

Part No PC817X2CSZ9F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description PHOTOCOUPLER  /  Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr SHARP/Socle Technology
Series PC817
Package Tube
Product Status Obsolete
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 50% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Rise / Fall Time (Typ) 4µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C ~ 100°C
Mounting Type Through Hole
Package / Case 4-DIP (0.300", 7.62mm)
Supplier Device Package 4-DIP
MSL Level Not Applicable
ECCN OBSOLETE
HTSUS 0000.00.0000
Standard Package 2,000
Win Source Part Number 959064-PC817X2CSZ9F
Ultra Librarian 3D Model Ultra Librarian PC817X2CSZ9F CAD Model

Description

The PC817X2CSZ9F optoisolator is a transistor output type device that is designed to provide high isolation voltage with high speed response times.

  • Series: PC817
  • Package: 4-DIP
  • Current Transfer Ratio: 50% @ 5mA
  • Maximum Voltage Output: 80V
  • Input Type: DC
  • Maximum DC Forward Current: 50mA
  • Rise Time: 4μs
  • Fall Time: 3μs
  • Isolation Voltage: 5000Vrms
  • Applications: motor control, power supply, and general switching circuits
