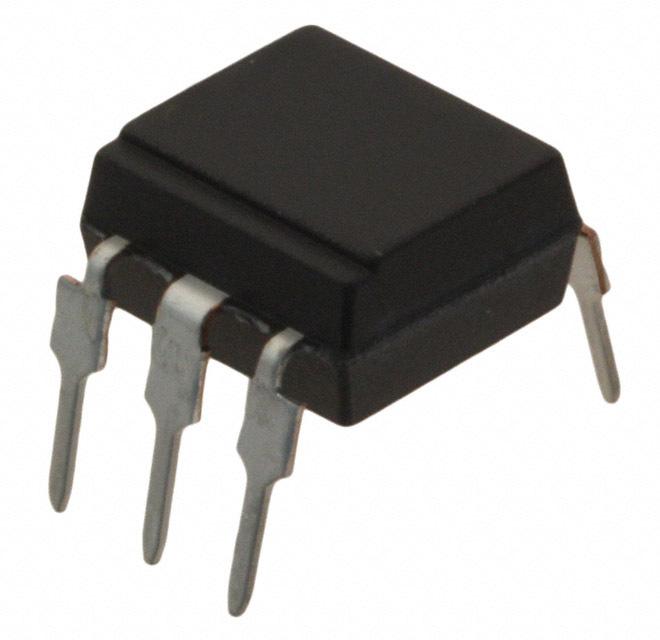

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 800V
Static dV/dt (Min) 50V/μs
Current - LED Trigger (Ift) (Max) 5mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Max)
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals CSA, UR
Win Source Part Number 1086664-PC4SD11NTZCF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC4SD11NTZCF CAD Model

Description

The Sharp Microelectronics PC4SD11NTZCF is a through-hole triac output type optocoupler that comes in a 6-DIP package.

  • Mounting Type: Through-Hole
  • Output Type: Triac Output
  • Package: 6-DIP
  • Forward Voltage: 1.2V
  • Off-State Voltage: 800V
  • Maximum On-State Current: 100mA
  • Static dV/dt: 50V/μs
  • Isolation Voltage: 5000Vrms
  • Current Hold: 3.5mA
  • Zero Crossing Circuit: No
  • Maximum Turn-On Time: 100μs
  • Approvals: CSA and UR
  • Operating Temperature Range: -30°C to 100°C
  • Supply and Demand Status: Balanced
