PC4H510NIP0F Sharp Microelectronics
Same model may have multiple batches, images only for reference.

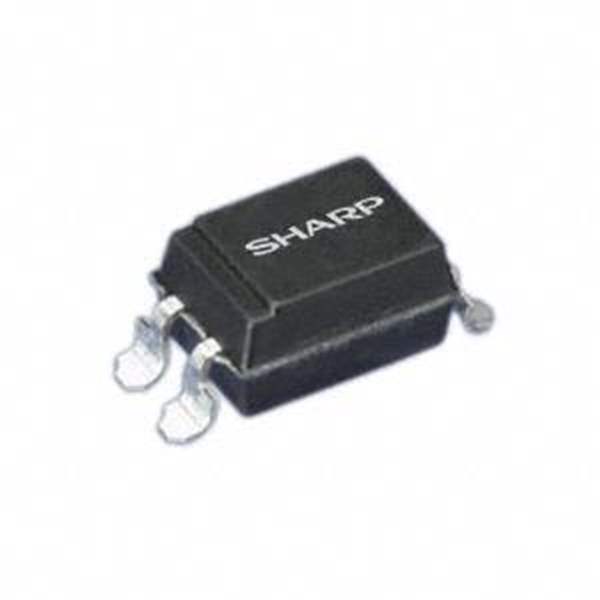

PC4H510NIP0F

Part No PC4H510NIP0F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 2.5KV TRANS 4SMD
Datasheet
PC4H510NIP0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 2500Vrms
Minimum DC Current Transfer Ratio 40% @ 5mA
Maximum DC Current Transfer Ratio 240% @ 5mA
Rise and Fall Time 4μs, 5μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 350V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -25°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 1086660-PC4H510NIP0F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC4H510NIP0F CAD Model

Description

The Sharp Microelectronics PC4H510NIP0F is an obsolete (EOL) transistor isolator that comes in a 4-Mini-Flat package.

  • Isolation Voltage: 2500Vrms
  • Forward Voltage: 1.2V
  • Maximum Output Voltage: 350V
  • Channel Output Current: 50mA
  • Minimum DC Current Transfer Ratio: 40% @ 5mA
  • Maximum DC Current Transfer Ratio: 240% @ 5mA
  • Rise Time: 4μs
  • Fall Time: 5μs
  • Application: High Voltage Isolation
