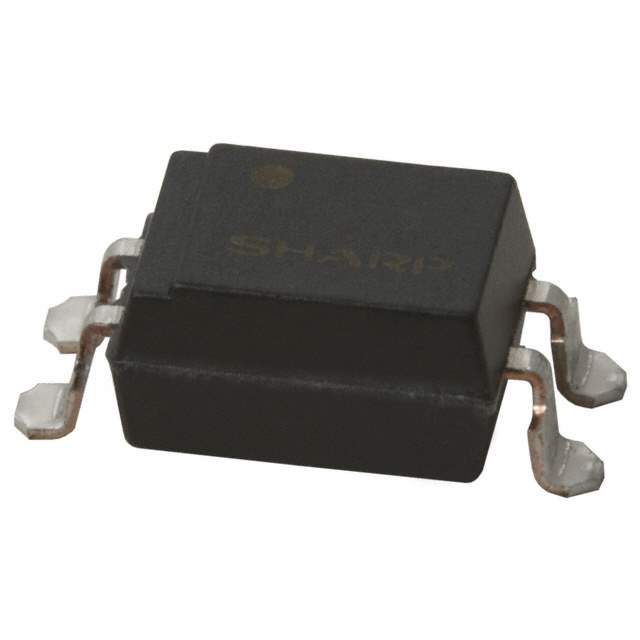

PC853XIJ000F Real Image
Same model may have multiple batches, images only for reference.

PC853XIJ000F

Part No PC853XIJ000F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV DARL 4SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Features Optoisolator Darlington Output 5000Vrms 1 Channel 4-SMD
Manufacturer Sharp Microelectronics
Package Tube
Part Status Obsolete
Operating Temperature Range -30°C ~ 100°C
Mounting Surface Mount
Package 4-SMD, Gull Wing
Case / Package 4-SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.8000
Quantity per package 100
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930065-PC853XIJ000F
Ultra Librarian 3D Model Ultra Librarian PC853XIJ000F CAD Model

Description

The Sharp Microelectronics PC853XIJ000F is an optoisolator with a Darlington output of 5000Vrms and 1 channel. The optoisolator is packaged in a 4-SMD, Gull Wing package and is designed for surface mount mounting.

  • Output: Darlington
  • Voltage Isolation: 5000Vrms
  • Channels: 1
  • Package: 4-SMD, Gull Wing
  • Mounting: surface mount mounting
  • Operating Temperature Range: -30°C to 100°C
  • Popularity: high popularity
  • Supply and Demand Status: balance of supply and demand
