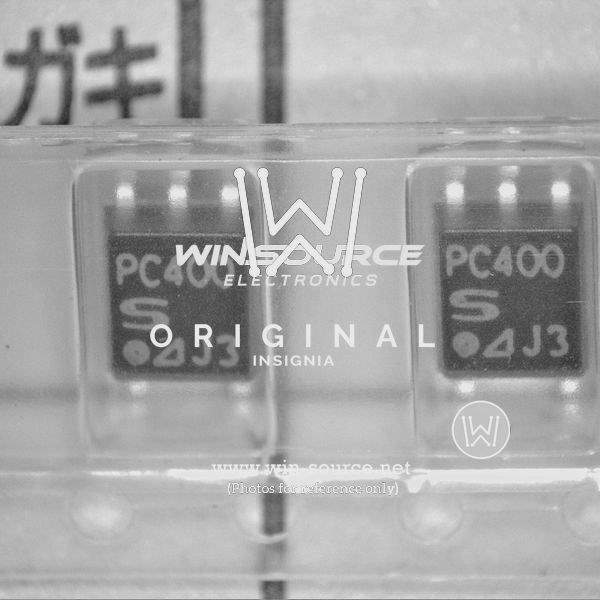

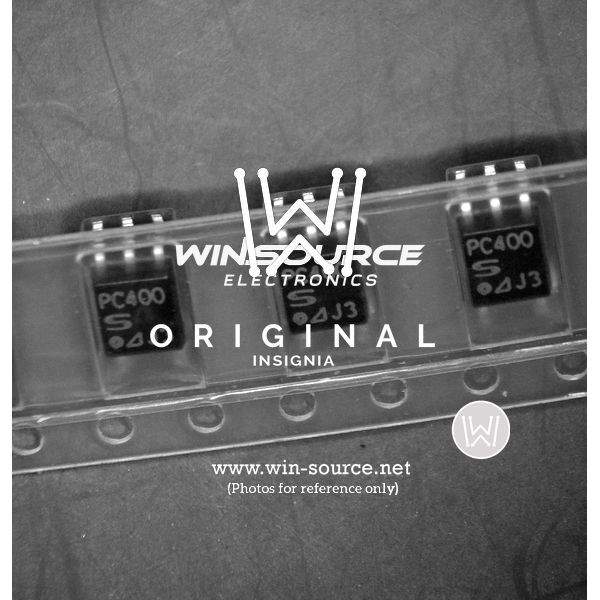

PC400TJ0000F Real Image PC400TJ0000F real image4457 PC400TJ0000F real image4458
Same model may have multiple batches, images only for reference.
PC400TJ0000F Real Image PC400TJ0000F real image4457 PC400TJ0000F real image4458
PC400TJ0000F Real Image PC400TJ0000F real image4457 PC400TJ0000F real image4458
Same model may have multiple batches, images only for reference.

PC400TJ0000F

Part No PC400TJ0000F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Logic Output
Description Optocoupler Logic-Out Open Collector DC-IN 1-CH 5-Pin Mini-Flat T/R / OPTOISO 3.75KV OPEN COLL 5MFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Input Type DC
Output Type Open Collector
Channel Output Current 50mA
Propagation Delay tpLH / tpHL (Max) 6μs, 3μs
Rise and Fall Time 100ns, 50ns
Forward Voltage 1.1V
Continuous forward current- Max 50mA
Supply Voltage - Operating 3 V to 15 V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Case / Package 5-MFP
Win Source Part Number 268999-PC400TJ0000F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PC400
Introduction Date February 24, 1997
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PC400TJ0000F CAD Model

Description

The Sharp Microelectronics PC400TJ0000F is a one-channel optoisolator with an open collector output type.

  • Forward Voltage: 1.1V
  • Common Mode Transient Immunity: Minimum Value
  • Propagation Delay tpLH/tpHL: 6μs and 3μs respectively
  • Isolation Voltage: 3750Vrms
  • Operating Temperature: -25°C to 85°C
  • Package: 5-MFP
  • Supply Voltage: 3V to 15V
  • Rise Time: 100ns
  • Fall Time: 50ns
  • Channel Output Current: 50mA
  • Continuous Forward Current-Max: 50mA
