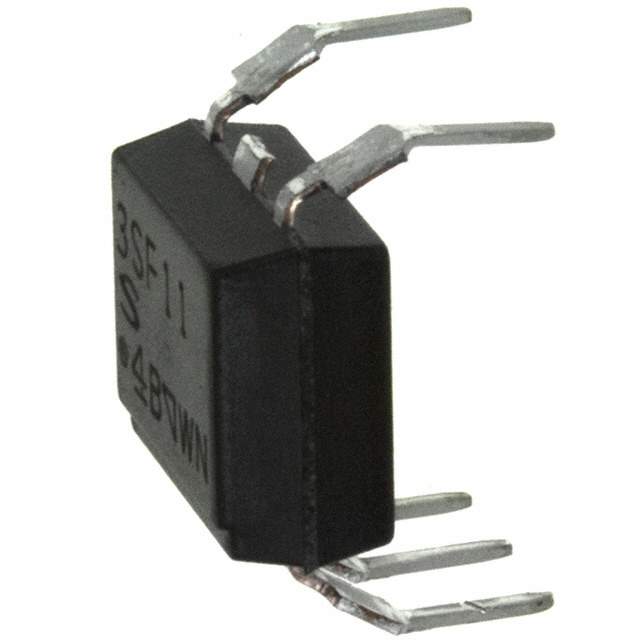

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 1kV/μs
Current - LED Trigger (Ift) (Max) 7mA
Current - On State (It (RMS)) (Max) 100mA
Current - Hold (Ih) 3.5mA
Turn On Time 100μs (Max)
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 6-DIP
Approvals BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE
Win Source Part Number 006142-PC3SF11YVZBF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian PC3SF11YVZBF CAD Model

Description

The PC3SF11YVZBF is a triac output type optocoupler that is designed to provide a reliable and efficient performance.

  • Forward Voltage: 1.2V
  • Voltage-Off State: 600V
  • Maximum Current-On State: 100mA
  • Channel Count: 1
  • Isolation Voltage: 5000Vrms
  • Current-Hold: 3.5mA
  • Static dV/dt (Min): 1kV/μs
  • Current-LED Trigger (Ift) (Max): 7mA
  • Turn-On Time: 100μs (Max)
  • MSL Level: not applicable
  • HTSUS: 8536.50.9035
  • Package: 6-DIP
  • Continuous Forward Current-Max: 50mA
