PC357N9TJ00F Sharp Microelectronics
Same model may have multiple batches, images only for reference.

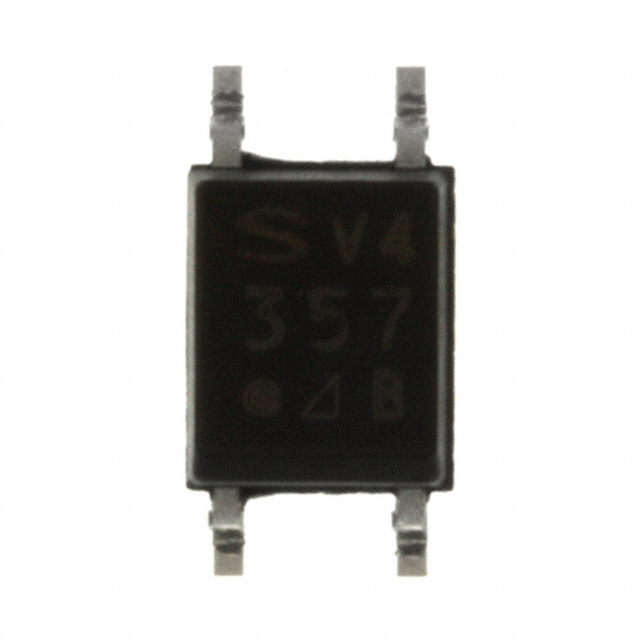

PC357N9TJ00F

Part No PC357N9TJ00F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin Mini-Flat T/R / OPTOISO 3.75KV TRANSISTOR 4BESOP
Datasheet
PC357N9TJ00F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 130% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 135356-PC357N9TJ00F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Test & Measurement, Signal Processing
Family Name PC357N9TJ00F
Introduction Date February 24, 1997
ECCN EAR99
Country of Origin China, Indonesia, Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PC357N9TJ00F CAD Model

Description

The Sharp Microelectronics 135356-PC357N9TJ00F is a transistor output type optocoupler.

  • DC Current Transfer Ratio (min): 130% @ 5mA
  • DC Current Transfer Ratio (max): 600% @ 5mA
  • Mounting Type: SMD (SMT)
  • Packaging: Reel - TR
  • Output Voltage: 80V
  • Channel Output Current: 50mA
  • Continuous Forward Current (max): 50mA
  • Supply and Demand Status: balanced
  • Applications: computers and computer peripherals, test and measurement, and signal processing
