Same model may have multiple batches, images only for reference.

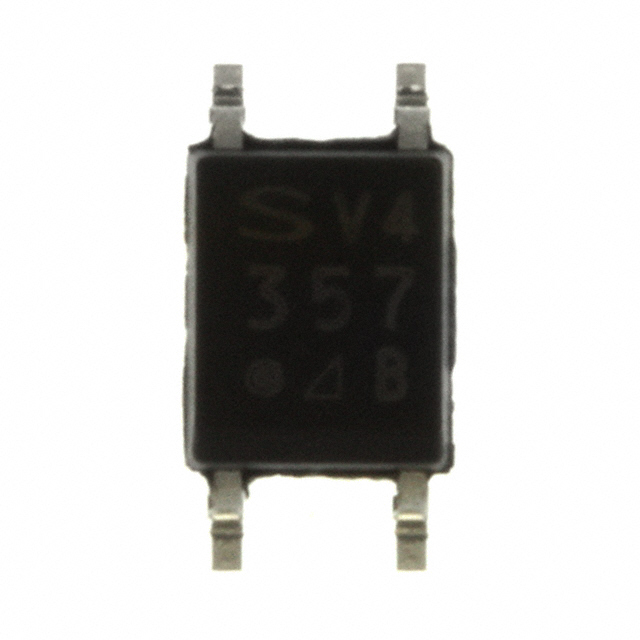

PC357N6TJ00F Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PC357N6TJ00F

Part No PC357N6TJ00F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANSISTOR 4BESOP
Datasheet
PC357N6TJ00F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 130% @ 5mA
Maximum DC Current Transfer Ratio 400% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 120754-PC357N6TJ00F
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Test & Measurement, Signal Processing
Ultra Librarian 3D Model Ultra Librarian PC357N6TJ00F CAD Model

Description

The PC357N6TJ00F is an electronic component manufactured by Sharp Microelectronics that has a medium popularity and balanced supply and demand status.

  • Type: high-performance semiconductor
  • Applications: computers and computer peripherals, test and measurement, and signal processing
  • Features: high-speed processing, low power consumption, and excellent isolation performance
  • Benefit: reliable and efficient component that can enhance the performance of electronic devices
