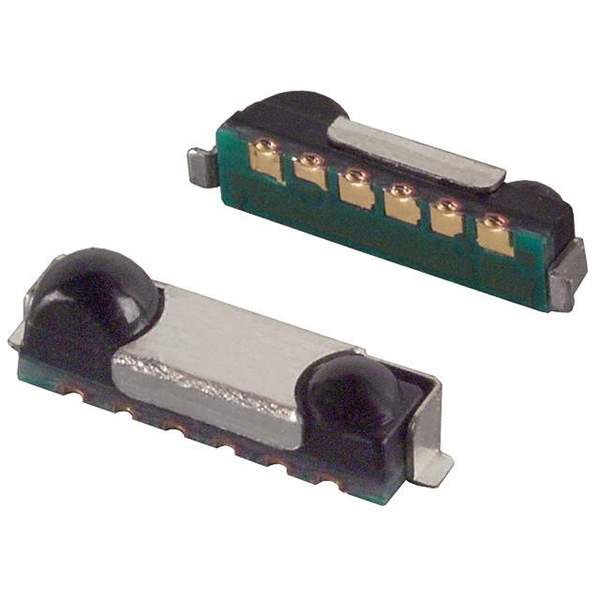

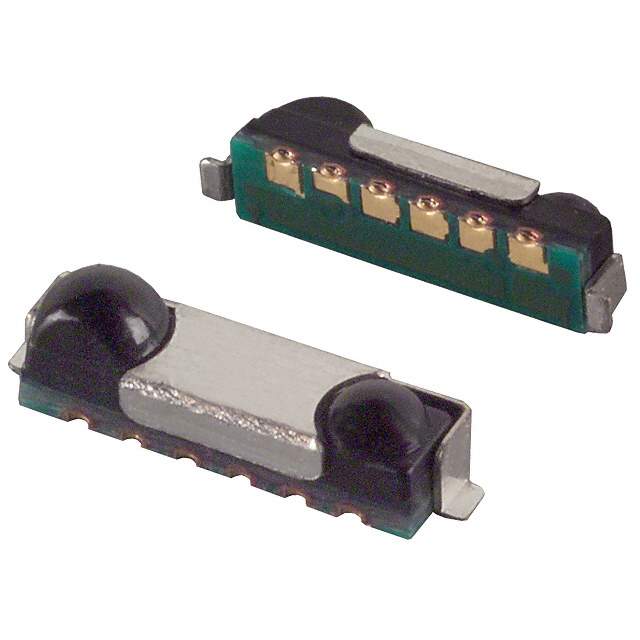

GP2W0118YP0F Real Image
Same model may have multiple batches, images only for reference.

GP2W0118YP0F

Part No GP2W0118YP0F
Manufacturer Sharp Microelectronics
Catalog IrDA Transceiver Modules
Description MODULE IRDA 115.2KBPS 7SMD  /  115.2kbs (SIR) IRDA Transceiver Top View
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>IrDA Transceiver Modules
Mfr Sharp Microelectronics
Package Tape & Reel
Product Status Obsolete
Data Rate 115.2kbs (SIR)
Voltage - Supply 2.7 V ~ 5.5 V
Link Range, Low Power 20cm
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C
Size 7.2mm x 2.8mm x 1.9mm
Standards IrPHY 1.2
Shutdown Yes
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Other Names 425-2060-6,425-2060-2,425-2060-1
Standard Package 2,000
Win Source Part Number 994445-GP2W0118YP0F
Ultra Librarian 3D Model Ultra Librarian GP2W0118YP0F CAD Model

Description

The GP2W0118YP0F is an IrDA transceiver module from Sharp Microelectronics.

  • Manufacturer: Sharp Microelectronics
  • Series: None specified
  • Package: tape & reel
  • Orientation: top view
  • Standard Package: 2,000
  • Data Rate: 115.2kbs (SIR)
  • Size: 7.2mm x 2.8mm x 1.9mm
  • Standard: IrPHY 1.2
  • Link Range: 20cm (low power)
  • Feature: shutdown
  • Voltage Supply: 2.7 V ~ 5.5 V
  • Operating Temperature: -40°C ~ 85°C
  • ECCN: EAR99
  • MSL Level: 4 (72 Hours)
  • HTSUS: 8543.70.9860
