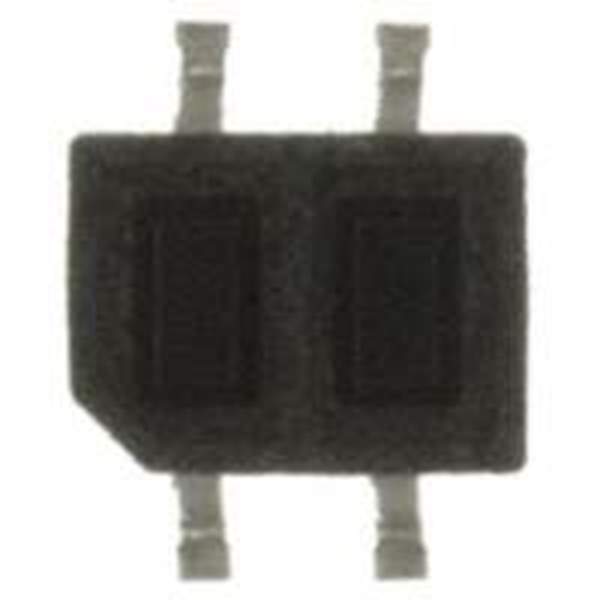

The GP2S27T3 is a compact, surface-mountable photointerrupter manufactured by Sharp Microelectronics. This device combines an infrared LED and a phototransistor in a single package, making it suitable for detecting the presence or absence of an object interrupting the infrared beam. Its small size and surface-mount design make it ideal for applications where space is limited and automated assembly is required.

Applications:

• Printers: Paper detection, position sensing, and encoder feedback.
• Copiers and Fax Machines: Document detection and paper feed control.
• Vending Machines: Object detection for dispensing mechanisms.
• Gaming Devices: Position and motion sensing in arcade machines and other gaming peripherals.
• Robotics: Obstacle detection and position feedback in robotic systems.
• Automated Teller Machines (ATMs): Card reader sensors and cash dispensing mechanisms.
• Optical Encoders: Providing digital position feedback in motors and other rotating equipment.

Features:

• Compact surface-mount package: Allows for high-density circuit board designs.
• Infrared LED and phototransistor: Provides reliable object detection.
• High sensitivity: Detects objects with minimal interruption of the infrared beam.
• Fast response time: Enables accurate detection of rapidly moving objects.
• Low power consumption: Suitable for battery-powered applications.
• Operating Temperature Range: -25°C to +85°C
• Lead-free construction: Compliant with RoHS environmental standards.

Benefits:

• Space-saving design: Allows for integration into small and crowded electronic devices.
• Reliable object detection: Ensures accurate and consistent performance.
• Improved system performance: Fast response time enables precise control and monitoring.
• Extended battery life: Low power consumption minimizes energy usage.
• Environmentally friendly: Lead-free construction reduces environmental impact.
• Reduced manufacturing costs: Surface mount technology simplifies assembly process.

Additional Details:

The GP2S27T3 typically operates at a forward current (IF) of around 20mA for the infrared LED. The collector-emitter voltage (VCE) of the phototransistor is usually around 30V. The device's operating wavelength is typically around 940nm. The gap between the LED and phototransistor is designed to allow for the passage of the object being detected. The phototransistor's output current changes depending on the presence or absence of an object blocking the infrared beam. External components, such as resistors, are often used to adjust the sensitivity and response time of the circuit.
