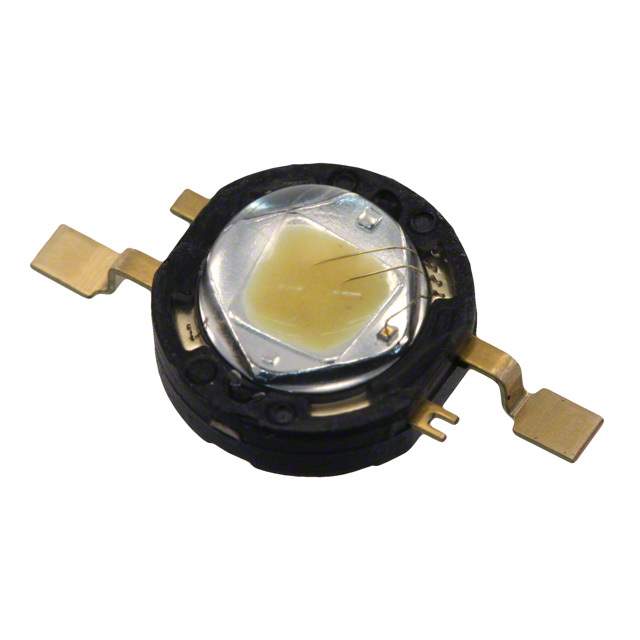

W42180-06-U2 Real Image
Same model may have multiple batches, images only for reference.

W42180-06-U2

Part No W42180-06-U2
Manufacturer Seoul Semiconductor Inc.
Catalog LED Lighting - White
Description LED ZPOWER COOL WHITE 6300K 2SMD
Datasheet
W42180-06-U2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Seoul Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Color White, Cool
CCT (K) 6300K (Typ)
Flux @ 85°C, Current - Test 89 lm
Flux @ 25°C, Current - Test 105 lm (100 lm to 109 lm)
Current - Test 350mA
Forward Voltage 3.25V
Lumens/Watt @ Current - Test 92 lm/W
CRI (Color Rendering Index) 75
Current - Max 1A
Viewing Angle 127°
Mounting SMD (SMT)
Height - Seated (Max) 0.208" (5.28mm)
Thermal Resistance of Package 7.2°C/W
Win Source Part Number 1117869-W42180-06-U2
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian W42180-06-U2 CAD Model

Description

This electronic component is manufactured by Seoul Semiconductor Inc. and has a Win Source Part Number of 1117869-W42180-06-U2.

  • Manufacturer: Seoul Semiconductor Inc.
  • Win Source Part Number: 1117869-W42180-06-U2
  • Packaging: Reel - TR
  • Color: White, Cool
  • Height: 0.208" (5.28mm)
  • Mounting: SMD (SMT)
  • Maximum Current: 1A
  • Forward Voltage: 3.25V
  • Viewing Angle: 127°
  • Current Test: 350mA
  • CCT (K): 6300K (Typ)
  • Flux @ 85°C, Current - Test: 89 lm
  • Flux @ 25°C, Current - Test: 105 lm (100 lm to 109 lm)
  • Lumens/Watt @ Current - Test: 92 lm/W
  • CRI (Color Rendering Index): 75
  • Thermal Resistance: 7.2°C/W
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Package Quantity: 500
