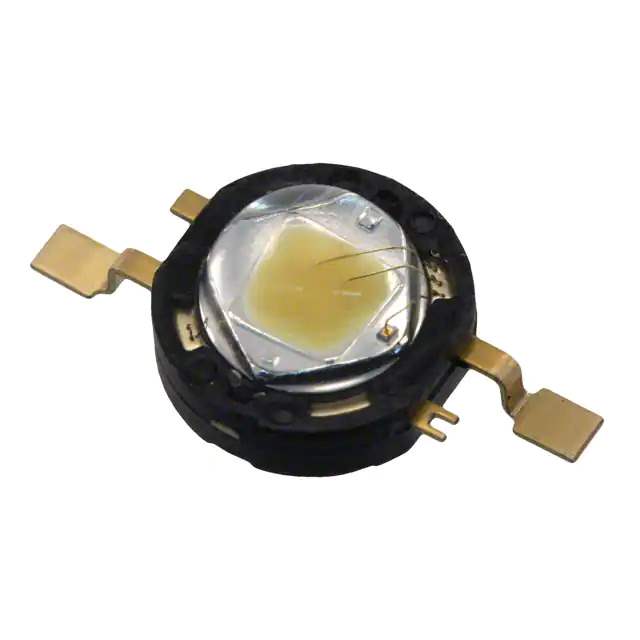

R42180 Real Image
Same model may have multiple batches, images only for reference.

R42180

Part No R42180
Manufacturer Seoul Semiconductor Inc.
Catalog LED Lighting - Color
Description LED Z-POWER RED 625NM SMD
Datasheet
R42180 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Color LED Lighting
Mfr Seoul Semiconductor Inc.
Series Z Power
Package Tape & Reel
Product Status Obsolete
Color Red
Wavelength 625nm (Typ)
Current - Test 350mA
Voltage - Forward (Vf) (Typ) 2.3V
Lumens/Watt @ Current - Test 60 lm/W
Current - Max 800mA
Luminous Flux @ Current/Temperature 48lm (Typ)
Temperature - Test 25°C
Viewing Angle 130°
Mounting Type Surface Mount
Package / Case 2-SMD, Gull Wing Exposed Pad
Supplier Device Package SMD
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.208" (5.28mm)
Thermal Resistance of Package 7.8°C/W
Standard Package 500 pcs
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 848715-R42180
Ultra Librarian 3D Model Ultra Librarian R42180 CAD Model

Description

The 848715-R42180 is a red color LED lighting component manufactured by Seoul Semiconductor Inc. 848715-R42180 is manufactured by Seoul Semiconductor Inc..

  • Color: Red
  • Series: Z Power
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.315" Dia (8.00mm)
  • Seated Height (Max): 0.208" (5.28mm)
  • Standard Package: 500 Pieces
  • Current - Max: 800mA
  • Viewing Angle: 130°
  • Voltage - Forward (Vf) (Typ): 2.3V
  • Current - Test: 350mA
  • Wavelength: 625nm
  • Luminous Flux @ Current - Typical: 48lm
  • Thermal Resistance Package: 7.8°C/W
  • Mounting Type: Surface Mount
  • Package / Case: 2-SMD, Gull Wing Exposed Pad
  • ECCN: EAR99
  • HTSUS: 8541.41.0000
  • Product Status: Obsolete
