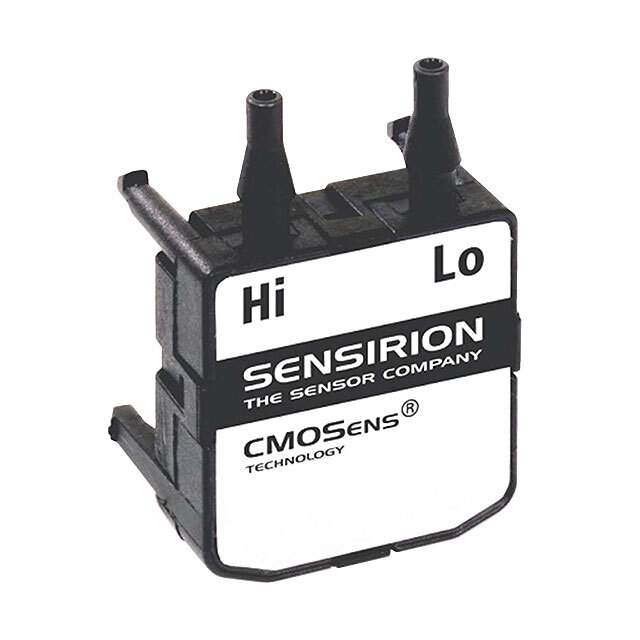

SDP1000-L Real Image1 SDP1000-L Real Image2
Same model may have multiple batches, images only for reference.
SDP1000-L Real Image1 SDP1000-L Real Image2
SDP1000-L Real Image1 SDP1000-L Real Image2
Same model may have multiple batches, images only for reference.

SDP1000-L

Part No SDP1000-L
Manufacturer Sensirion AG
Catalog Pressure Sensors, Transducers
Description SENSOR 0.072PSID 0.2" 4V MODULE / Pressure Sensor -0.003PSI ~ 0.072PSI (-0.02kPa ~ 0.5kPa) Differential Male - 0.2" (5.2mm) Tube, Dual 0.25 V ~ 4 V Module
Datasheet
SDP1000-L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Sensirion AG
Series SDP1000
Package Tray
Product Status Not For New Designs
Applications Board Mount
Pressure Type Differential
Operating Pressure -0.003PSI ~ 0.072PSI (-0.02kPa ~ 0.5kPa)
Output Type Analog Voltage
Output 0.25 V ~ 4 V
Accuracy ±0.2%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.2" (5.2mm) Tube, Dual
Port Style Barbed
Features Temperature Compensated
Termination Style -
Maximum Pressure 14.5PSI (100kPa)
Temperature Range - Operating -10°C ~ 60°C
Package / Case Module
Supplier Device Package Module
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Standard Package 25 pcs
Win Source Part Number 1383410-SDP1000-L
Ultra Librarian 3D Model Ultra Librarian SDP1000-L CAD Model

Description

The SDP1000-L is a differential pressure sensor designed for board mount applications. It features a temperature compensated output voltage ranging from 0.25V to 4V, with an accuracy of ±0.2%. The sensor operates in a pressure range of -0.003PSI to 0.072PSI (-0.02kPa to 0.5kPa), making it suitable for applications requiring precise pressure measurements.

  • Port Style: Barbed
  • Port Size: Male 0.2" (5.2mm) Tube, Dual
  • Maximum Pressure: 14.5PSI (100kPa)
  • Voltage Supply: 4.75V to 5.25V
  • Temperature Range: -10°C to 60°C
  • Package: Module
  • Standard Package: 25 pcs
