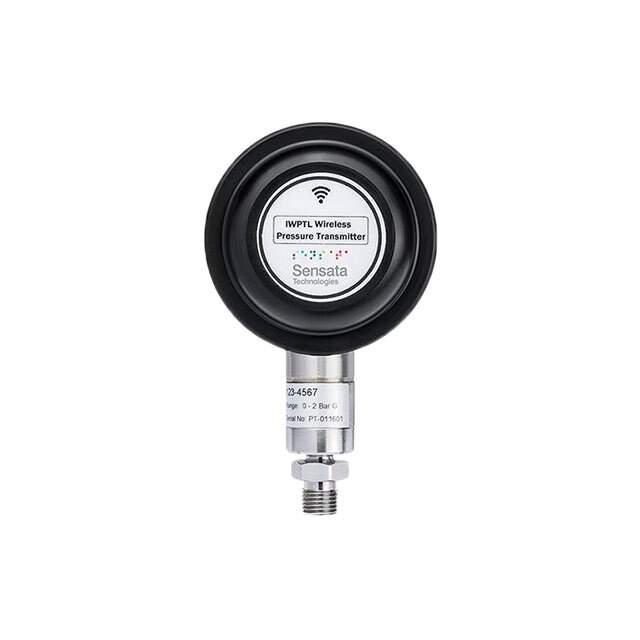

IWPTL-A1000-00 Real Image
Same model may have multiple batches, images only for reference.

IWPTL-A1000-00

Part No IWPTL-A1000-00
Manufacturer Sensata-Cynergy3
Catalog Pressure Sensors, Transducers
Description PRESSURE SENSOR WIRELESS 2.4GHZ /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers - Industrial
Mfr Sensata-Cynergy3
Series IWPTL
Package Bulk
Pressure Type Absolute
Operating Pressure 0 ~ 14.5PSI (0 ~ 100kPa)
Output Type Analog Current/Voltage
Output 4mA ~ 20mA, 1V ~ 5V
Accuracy ±0.25%
Port Size Male - 1/4" (6.35mm) BSP
Port Style Threaded
Features Temperature Compensated
Termination Style Connector
Maximum Pressure 72.52PSI (500kPa)
Temperature Range - Operating -20°C ~ 80°C (TA)
Package / Case Module
MSL Level Not Applicable
Other Names 725-IWPTL-A1000-00,2266-IWPTL-A1000-00
Standard Package 1
Win Source Part Number 1192787-IWPTL-A1000-00
Ultra Librarian 3D Model Ultra Librarian IWPTL-A1000-00 CAD Model

Description

The IWPTL-A1000-00 is an industrial pressure sensor from Sensata-Cynergy3.

  • Output Type: Analog Current/Voltage
  • Output Current/Voltage: 4mA to 20mA and 1V to 5V
  • Feature: Temperature Compensated
  • Accuracy: ±0.25%
  • Pressure Type: Absolute
  • Operating Pressure Range: 0 to 14.5PSI (0 to 100kPa)
  • Package: Module
  • Operating Temperature: -20°C to 80°C (TA)
