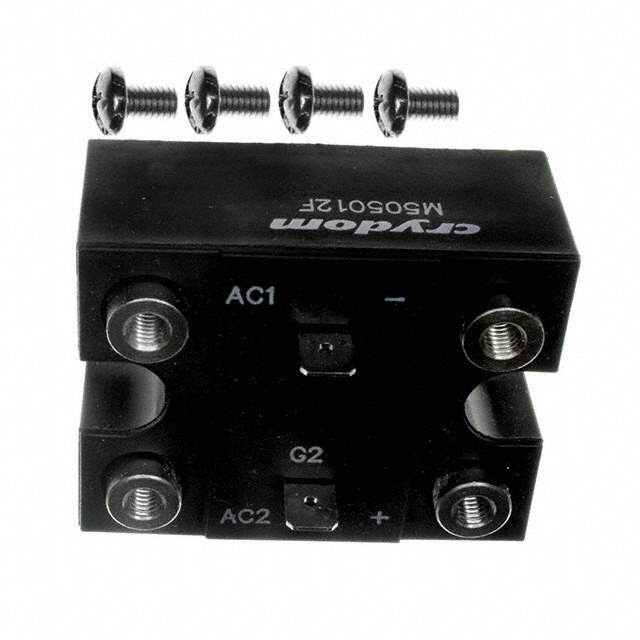

M505012F Real Image
Same model may have multiple batches, images only for reference.

M505012F

Part No M505012F
Manufacturer Sensata-Crydom
Catalog SCRs - Single - Modules
Description MODULE POWER 50A 600V SCR DIODE / SCR Module 600 V Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs - Modules
Mfr Sensata-Crydom
Series M50
Package Bulk
Structure Bridge, Single Phase - SCRs/Diodes (Layout 1)
Number of SCRs, Diodes 2 SCRs, 2 Diodes
Voltage - Off State 600 V
Voltage - Gate Trigger (Vgt) (Max) 3 V
Current - Gate Trigger (Igt) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 600A @ 60Hz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
Base Product Number M505012
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.30.0080
Other Names M505012F-ND,CC1654
Standard Package 10
Win Source Part Number 1169566-M505012F
Ultra Librarian 3D Model Ultra Librarian M505012F CAD Model

Description

The Sensata-Crydom M505012F is a module consisting of 2 SCRs and 2 diodes.

  • Series: M50
  • Voltage Off State: 600 V
  • Voltage Gate Trigger (Vgt) (Max): 3 V
  • Current Gate Trigger (Igt) (Max): 150 mA
  • Non-Repetitive Surge: 600A @ 50, 60Hz (Itsm)
  • Mounting: Chassis
  • Package/Case: Module
  • Temperature Range: -40°C to 125°C (TJ)
  • Structure: Bridge, single phase - SCRs/diodes (layout 1)
  • ECCN: EAR99
  • HTSUS: 8541.30.0080
