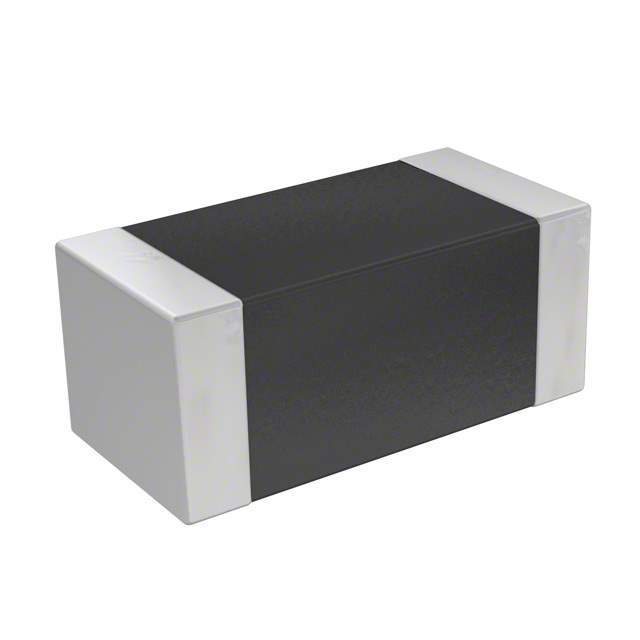

ILSB1206ER100K Real Image
Same model may have multiple batches, images only for reference.

ILSB1206ER100K

Part No ILSB1206ER100K
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 10UH 25MA 1 OHM SMD
Datasheet
ILSB1206ER100K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay Dale
Packaging Reel
Type Multilayer
Material - Core Ferrite
Inductance 10μH
Tolerance ±10%
Current Rating (Amps) 25mA
Shielding Shielded
DC Resistance (DCR) 1Ohm Max
Q at Freq 45 at 2MHz
Frequency - Self Resonant 28MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 2MHz
Mounting Style SMD
Manufacturer Package 1206
Supplier Device Package 1206
Parts Dimension 3.20mm x 1.60mm
Height - Seated (Maximum) 0.055" (1.40mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759200-ILSB1206ER100K
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ILSB1206ER100K CAD Model

Description

The Vishay Dale 759200-ILSB1206ER100K is a shielded, surface mountable inductor that has a multilayer type and a 10μH inductance.

  • Tolerance: ±10%
  • DC Resistance (DCR): 1Ohm Max
  • Frequency Self-Resonant: 28MHz
  • Q @ Freq: 45 @ 2MHz
  • Current Rating (Amps): 25mA
  • Maximum Operating Temperature: 125 °C
  • RoHS Compliant: yes
  • Supply and Demand Status: balance
  • Manufacturer Pack Quantity: 1
  • Parts Dimension: 3.20mm x 1.60mm
