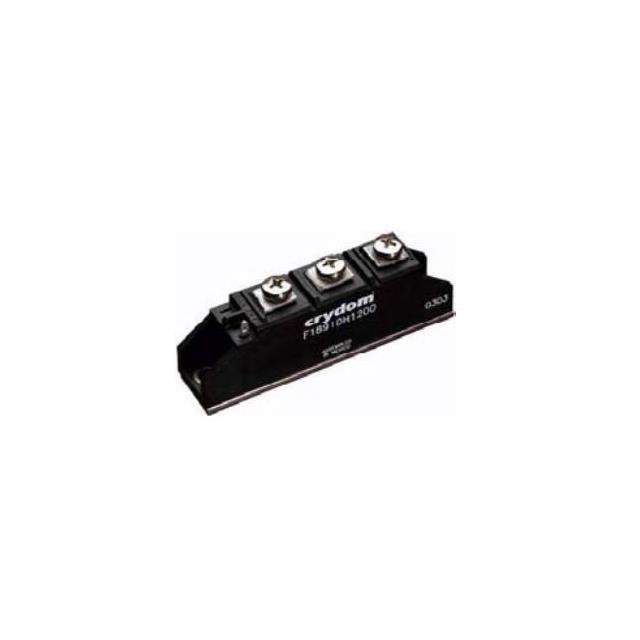

F1892SD1000 Real Image
Same model may have multiple batches, images only for reference.

F1892SD1000

Part No F1892SD1000
Manufacturer Sensata-Crydom
Catalog SCRs - Single - Modules
Description MODULE SCR/DIODE 90A 380VAC / SCR Module 1 kV Series Connection - All SCRs Chassis Mount Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs - Modules
Mfr Sensata-Crydom
Series F18
Package Bulk
Product Status Not For New Designs
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1 kV
Voltage - Gate Trigger (Vgt) (Max) 3 V
Current - Gate Trigger (Igt) (Max) 150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1950A @ 60Hz
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Chassis Mount
Package / Case Module
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.30.0080
Other Names 2266-F1892SD1000
Standard Package 5
Win Source Part Number 1122172-F1892SD1000
Ultra Librarian 3D Model Ultra Librarian F1892SD1000 CAD Model

Description

The Sensata-Crydom F1892SD1000 is a thyristor-SCR module that is used in various electronic applications.

  • Voltage Off State: 1 kV
  • Voltage Gate Trigger: 3 V (Max)
  • Current Gate Trigger: 150 mA (Max)
  • Current Non-Rep. Surge 50, 60Hz (Itsm): 1950A @ 60Hz
  • Structure: series connection - all SCRs
  • Number of SCRs: two
  • Mounting: chassis
