Same model may have multiple batches, images only for reference.

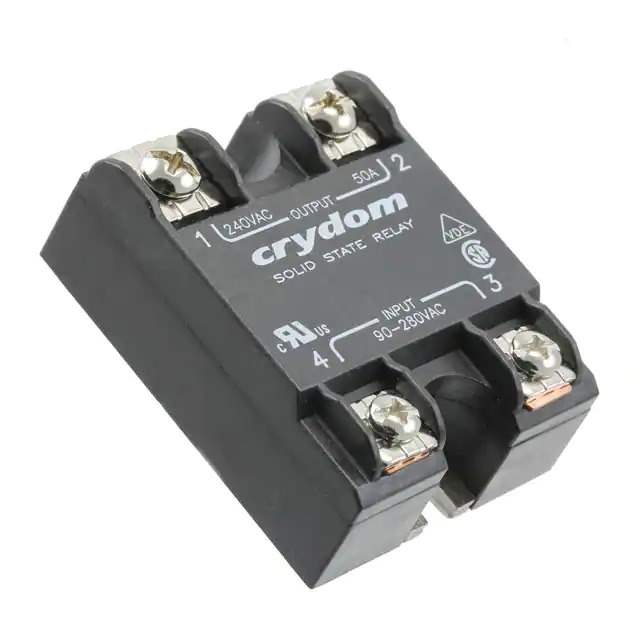

D2475 Real Image
Same model may have multiple batches, images only for reference.

D2475

Part No D2475
Manufacturer Sensata-Crydom
Catalog Solid State Relays
Description SSR RELAY SPST-NO 75A 24-280V / Solid State SPST-NO (1 Form A) Hockey Puck
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Sensata-Crydom
Series 1
Package Bulk
Product Status Active
Mounting Type Chassis Mount
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 3 ~ 32VDC
Voltage - Load 24 V ~ 280 V
Load Current 75 A
Termination Style Screw Terminal
Package / Case Hockey Puck
Standard Package 20 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0080
California Prop 65 Warning Information
Win Source Part Number 916642-D2475
Ultra Librarian 3D Model Ultra Librarian D2475 CAD Model

Description

The Sensata-Crydom 916642-D2475 is a solid state relay from the 1 series.

  • Application: Relay
  • Termination Style: Screw Terminal
  • Voltage Input: 3 ~ 32VDC
  • Output Type: AC Zero-Cross
  • Circuit: SPST-NO (1 Form A)
  • Load Current: 75 A
  • Voltage Load Range: 24 V ~ 280 V
  • Mounting: Chassis Mount
  • Package: Hockey Puck
  • Packaging: Bulk
  • Standard Package: 20 pcs
  • Status: Active
  • California Prop 65: Compliant
