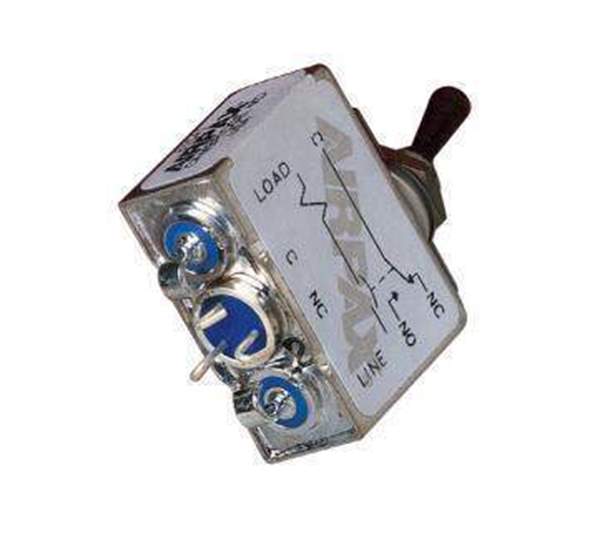

M39019/01-257S Sensata-Airpax
Same model may have multiple batches, images only for reference.

M39019/01-257S

Part No M39019/01-257S
Manufacturer Sensata-Airpax
Catalog Circuit Breakers
Description CIR BRKR HYD MAG
Datasheet
M39019/01-257S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308369-M39019/01-257S
Manufacturer Sensata-Airpax
Category Circuit Protection> Circuit Breakers
Packaging Bulk
Part Status Active
Mounting Type Panel Mount
Breaker Type Magnetic (Hydraulic Delay)
Current Rating (Amps) 20A
Voltage Rating - AC 240 V
Voltage Rating - DC 50 V
Actuator Type Lever
Ultra Librarian 3D Model Ultra Librarian M39019/01-257S CAD Model

Description

The Airpax™ AP series are fully sealed, magnetic circuit protectors that combine power switching and accurate, reliable circuit protection with inverse time delays and trip free features. Unlike a thermal circuit protector, the AP does not change its trip current over a wide temperature span. In addition, the AP magnetic circuit protector is available in either DC, 50/60Hz or 400Hz versions and with various delays to match the protector to specific application requirements.
