Same model may have multiple batches, images only for reference.

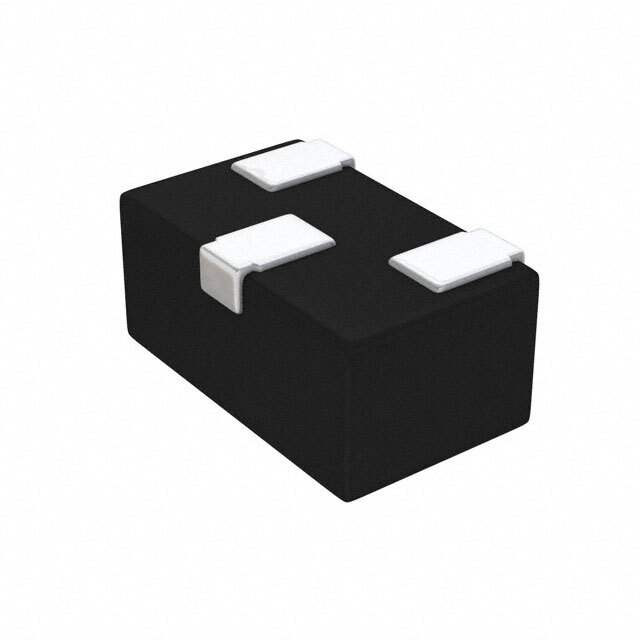

UCLAMP0552T.TNT Real Image
Same model may have multiple batches, images only for reference.

UCLAMP0552T.TNT

Part No UCLAMP0552T.TNT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 15VC SLP1006N3T / 15V Clamp 2A (8/20μs) Ipp Tvs Diode Surface Mount SLP1006N3T
Datasheet
UCLAMP0552T.TNT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Semtech Corporation
Series uClamp®
Package Tape & Reel
Product Status Obsolete
Type Zener
Bidirectional Channels 2
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 15V
Current - Peak Pulse (10/1000µs) 2A (8/20µs)
Power - Peak Pulse 30W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 7pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 3-XDFN
Supplier Device Package SLP1006N3T
Base Product Number UCLAMP0552
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 901799-UCLAMP0552T.TNT
Ultra Librarian 3D Model Ultra Librarian UCLAMP0552T.TNT CAD Model

Description

The UCLAMP0552T.TNT is a transient voltage suppressor (TVS) diode designed for circuit protection applications.

  • Category: Circuit protection - transient voltage suppressors (TVS) - TVS diodes
  • Reverse Standoff Voltage: 5V
  • Breakdown Voltage: 6V
  • Clamping Voltage: 15V @ peak pulse current
  • Type: Bidirectional TVS diode
  • Channels: Two channels
  • Package: Surface mount
  • Temperature Range: -55°C to 125°C
  • Status: Obsolete
  • Manufacturer: Semtech Corporation
