The uClamp0501T is a transient voltage suppression (TVS) diode array designed by Semtech Corporation. It is intended to protect sensitive electronic equipment from electrostatic discharge (ESD), electrical fast transients (EFT), and lightning-induced surges.

Applications

• Cellular phones
• Smartphones
• Portable devices
• Wearable electronics
• HDMI ports
• USB ports
• Data lines

Features

• Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
• IEC 61000-4-4 (EFT) 40A (5/50ns)
• IEC 61000-4-5 (Lightning) 5A (8/20μs)

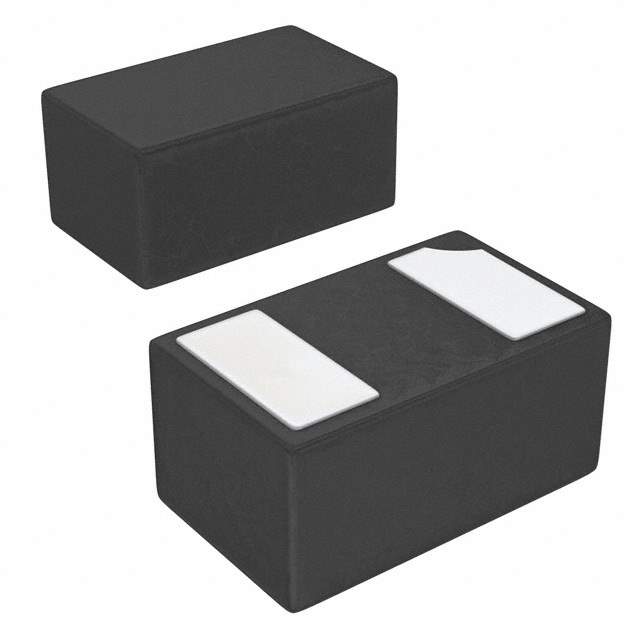

• Small package: SOT-553
• Protects one I/O line
• Low clamping voltage
• Low leakage current

Benefits

• Enhanced ESD protection, increasing the reliability of electronic devices.
• Protection against EFT and lightning surges, preventing damage from transient events.
• Small footprint, suitable for high-density PCB layouts.
• Simple implementation, reducing design complexity and cost.
• Minimal impact on signal integrity due to low capacitance.

Additional Details

The uClamp0501T is a single-line TVS diode designed to protect sensitive I/O lines from transient voltage events. It is fabricated using Semtech's proprietary silicon avalanche technology, which provides a high level of protection against ESD, EFT, and lightning surges.

The device is characterized by its low clamping voltage, which ensures that the voltage seen by the protected circuit remains within safe limits during a transient event. The low leakage current minimizes power consumption and ensures that the device does not interfere with normal circuit operation.

The uClamp0501T is packaged in a small SOT-553 package, making it ideal for use in space-constrained applications such as mobile phones, portable devices, and wearable electronics. The device is RoHS compliant and halogen-free.

It can be used to protect various interfaces, including USB, HDMI, and data lines. Its fast response time and low capacitance make it suitable for high-speed data transmission applications. The uClamp0501T is a reliable and cost-effective solution for protecting electronic equipment from transient voltage events.
