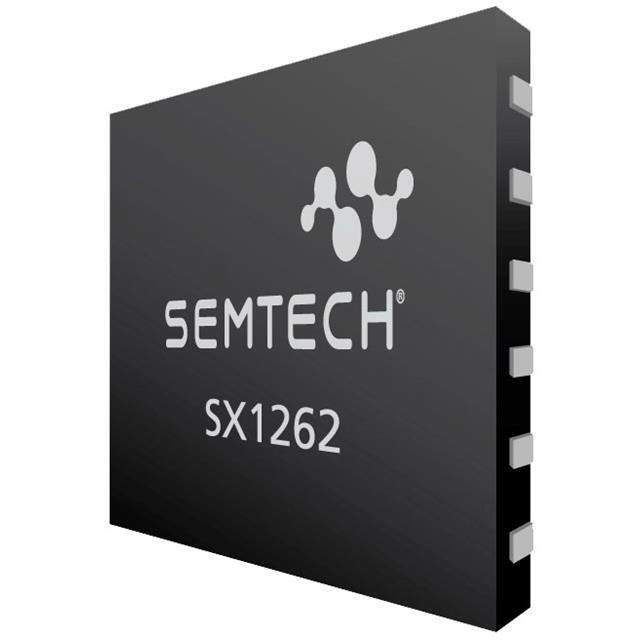

SX1262IMLTRT

Part No SX1262IMLTRT
Manufacturer Semtech Corporation
Catalog RF Transceiver ICs
Description IC RF TXRX ISM / Long Range, Low Power, sub-GHz RF Transceiver
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Semtech Corporation
Packaging Reel
Type TxRx Only
RF Family/Standard General ISM
Protocol LoRaWAN
Modulation FSK, GFSK
Frequency 150MHz ~ 960MHz
Data Rate (Maximum) 300kbps
Power - Output 22dBm
Sensitivity -148dBm
Serial Interfaces SPI
Supply Voltage (V) 1.8V ~ 3.7V
Current - Receiving 4.2mA ~ 10.1mA
Current - Transmitting 32mA ~ 118mA
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 24-VFQFN Exposed Pad
Supplier Device Package 24-QFN (4x4)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801788-SX1262IMLTRT
Ultra Librarian 3D Model Ultra Librarian SX1262IMLTRT CAD Model

Description

The Semtech Corporation 801788-SX1262IMLTRT is a TxRx only product that comes in reel packaging.

  • Frequency Range: 150MHz to 960MHz
  • Protocol: LoRaWAN
  • Power Output: 22dBm
  • Sensitivity: -148dBm
  • Receiving Current: 4.2mA to 10.1mA
  • Modulation: FSK and GFSK
  • Serial Interface: SPI
  • Transmitting Current: 32mA to 118mA
  • Package: 24-QFN (4x4)
  • Temperature Range: -40°C to 85°C
  • Manufacturer Pack Quantity: 3,000
