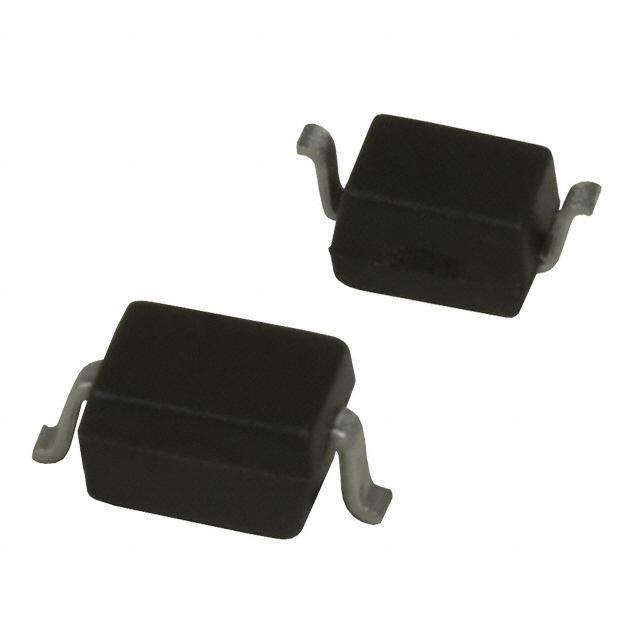

SD12.TCT

Name: SD12.TCT
Brand: Semtech Corporation
SKU: 317084
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SD12.TCT
Manufacturer	Semtech Corporation
Catalog	TVS - Diodes
Description	TVS DIODE 12VWM 25VC
Datasheet	SD12.TCT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Semtech Corporation
Packaging	Reel - TR
Status	Active
Type	Zener
Unidirectional Channels	1
STAND-OFF Voltage (Vwm)	12V (Max)
Minimum Breakdown Voltage	13.3V
Max Clamping Voltage	25V
Peak Pulse Current(Ippm)	15A (8/20μs)
Power Dissipation - Pd	350W
Applications	General Purpose
Capacitance @ Frequency	150pF @ 1MHz
Temperature Range - Operating	-55°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	SOD-323
Win Source Part Number	028176-SD12.TCT
Family Name	SD12
Introduction Date	October 03, 2000
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2023
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Application Field	Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Portable Devices, Sensing & Instrumentation, Industrial
Ultra Librarian 3D Model	Ultra Librarian SD12.TCT CAD Model

Description

The Semtech Corporation SD12.TCT is a Zener diode designed for general-purpose applications.

Stand-off Voltage (max): 12V
Minimum Breakdown Voltage: 13.3V
Maximum Clamping Voltage: 25V
Peak Pulse Current (Ippm): 15A (8/20μs)
Power Dissipation - Pd: 350W
Mounting Technology: Surface Mount Technology (SMT)
Package: SOD-323
Operating Temperature Range: -55°C to 125°C (TJ)
Capacitance: 150pF @ 1MHz
Series: SD12
Compliance: RoHS
Applications: computers and computer peripherals, communications and networking, consumer electronics, portable devices, sensing and instrumentation, and industrial applications
